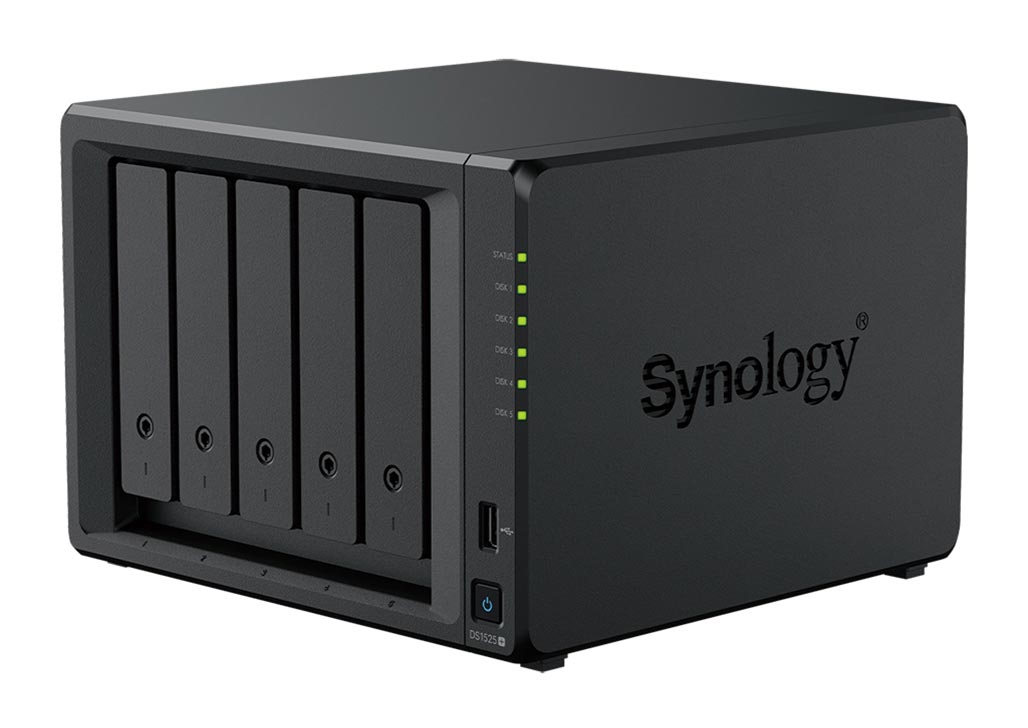

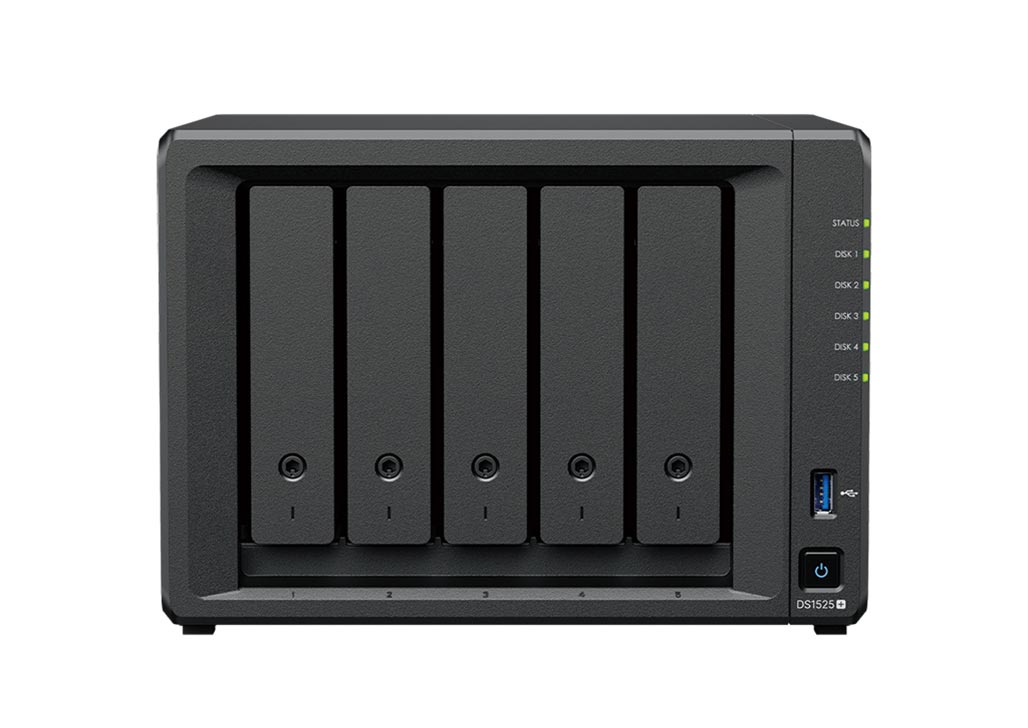

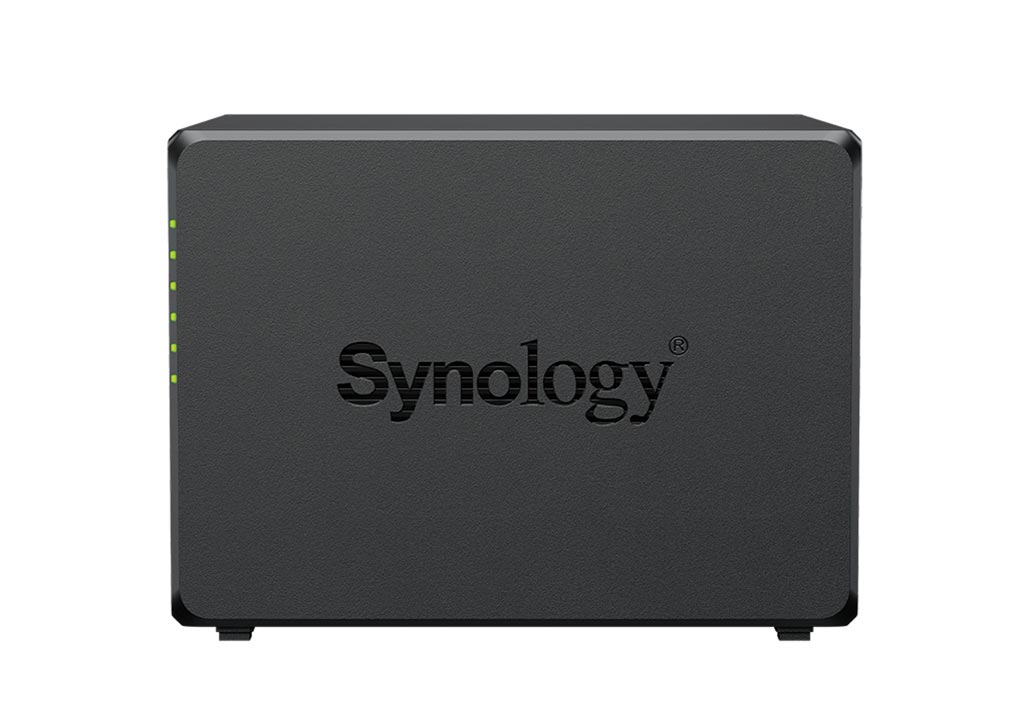

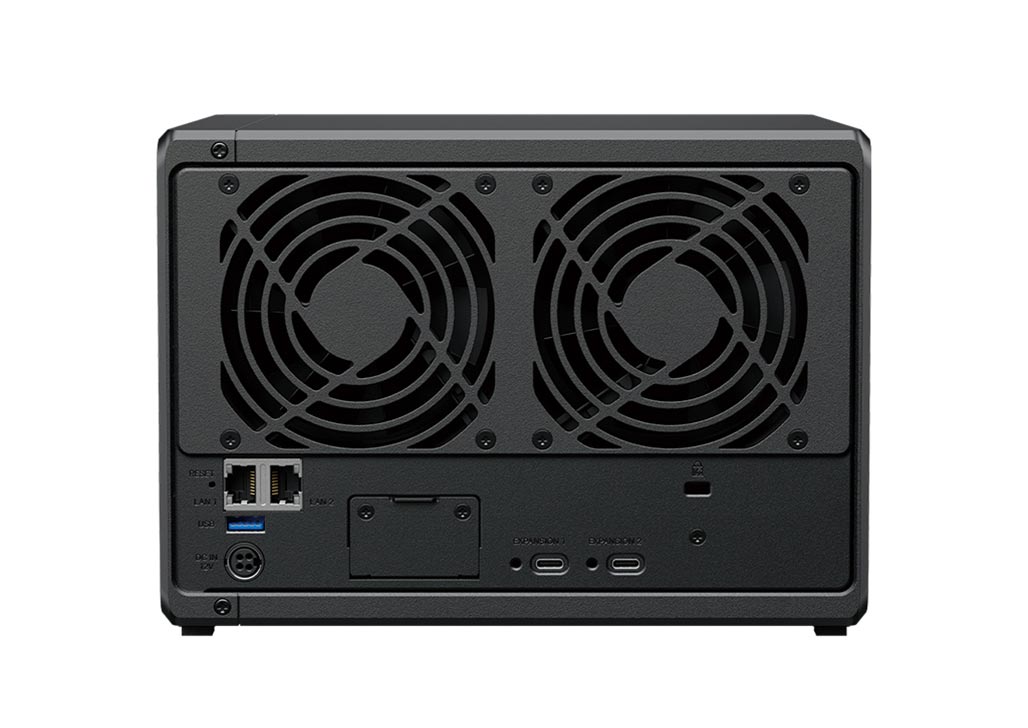

Synology DiskStation DS1525+ (5-Bay NAS) Νέο

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

3.5" SATA HDD

2.5" SATA SSD

M.2 2280 NVMe SSD

• The hot swappable drive feature is not supported by M.2 SSD slots.
• Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

Full-Speed Mode

Cool Mode

Quiet Mode

For more information on how power consumption is measured, refer to this article.

Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A), Temperature: 24.25-25.75˚C, Humidity: 58.2-61.8%

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC
• BIS

Main Unit x 1

Accessory Pack x 1

AC Power Adapter x 1

AC Power Cord x 1

RJ-45 LAN Cable x 2

• 200 TB (32 GB memory required)
• 108 TB

• Synology Hybrid RAID
• Basic
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• Basic to RAID 1
• Basic to RAID 5
• RAID 1 to RAID 5
• RAID 5 to RAID 6

• Synology Hybrid RAID
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• Synology Hybrid RAID
• JBOD
• RAID 5
• RAID 6

• Synology Hybrid RAID
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• Volumes over 108 TB require 32 GB of memory or more.
• Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
• Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
• Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more)

• Btrfs
• ext4

• Btrfs
• ext4
• ext3
• FAT32
• NTFS
• HFS+
• exFAT

• SMB
• AFP
• NFS
• FTP
• WebDAV
• Rsync

• Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports
• SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration:
  • Test workload: HomeFolder scenario provided by the FSCT tool
  • Test duration: 600 seconds
  • Domain controller & FSCT controller: Windows Server 2022
  • FSCT clients: 8 × Windows 10 machines
  • SMB feature: Directory leasing enabled

• Chrome
• Firefox
• Edge
• Safari

• Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
• Models with expandable memory are tested with the maximum supported quantity installed.

• The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more
• Models with SSD support are tested with a single SSD volume.
• Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements.
• Operating in high-availability mode will incur additional overhead.
• Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).

• 1080p: 40 channels, 1050 FPS
• 3M: 40 channels, 600 FPS
• 5M: 30 channels, 360 FPS
• 4K: 20 channels, 200 FPS

• 1080p: 40 channels, 1200 FPS
• 3M: 40 channels, 1000 FPS
• 5M: 40 channels, 600 FPS
• 4K: 30 channels, 300 FPS

• Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
• Use NVR Selector to quickly find a suitable model based on your requirements.
• The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.

• The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more
• Models with SSD support are tested with a single SSD volume.
• Models with expandable memory are tested with the maximum supported quantity installed.
• Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
• Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

• The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more
• Models with SSD support are tested with a single SSD volume.
• Models with expandable memory are tested with the maximum supported quantity installed.
• Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
