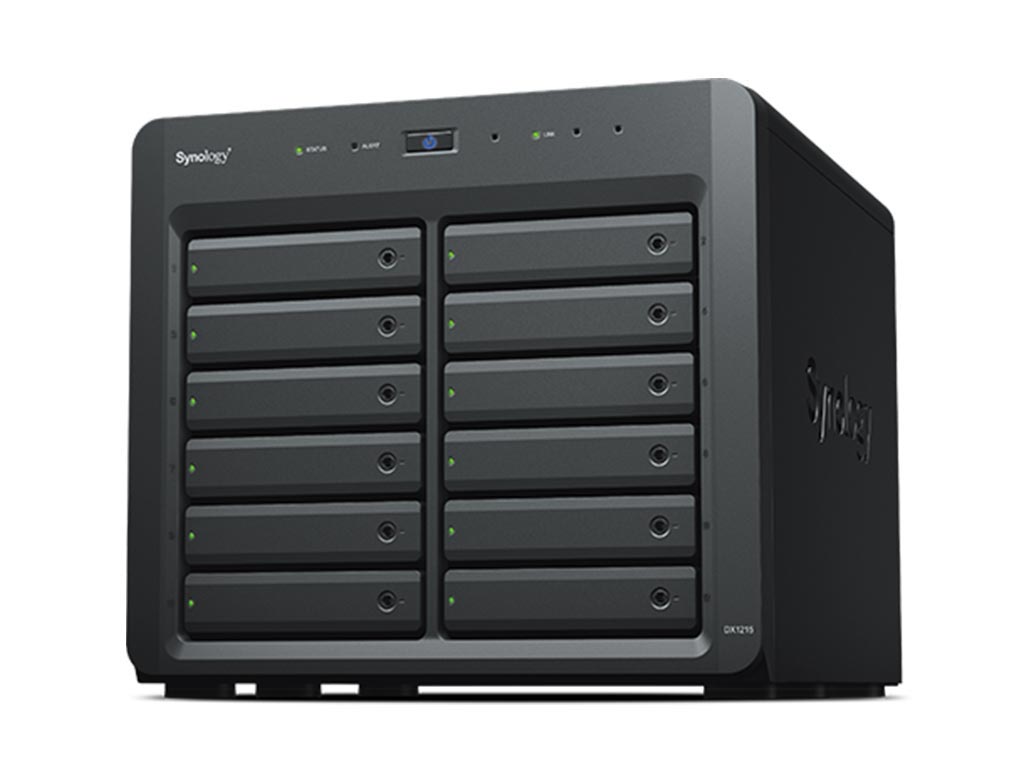

Synology DX1215 (12-Bay NAS Expansion Unit)
![Synology DX1215 (12-Bay NAS Expansion Unit) [DX1215] Εικόνα 1](https://static.msystems.gr/photos/big_photos/39352.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Highlight
- Plug-and-Use design for seamless storage space upgrade
- Online volume expansion
- SATA III 6Gb/s interface support
- Perfect for local backup solution
- Energy-saving hibernation mode
- Managed from Synology DiskStation Manager (DSM)
Volume Expansion & Backup
When drive capacity is running low on a Synology DiskStation, Synology DX1215 provides an easy way to immediately scale capacity by providing an additional 12 drive slots. A RAID volume on the Synology DiskStation can be expanded directly without having to reformat the existing drives, ensuring the Synology DiskStation continues providing services during capacity expansion.
Synology DX1215 can serve as a dedicated local backup solution for a Synology DiskStation. When created as a separate volume, the Synology DX1215 provides a great backup solution for local drives in case of system failure.
Reliable Plug-and-Use Design
DX1215 securely connects to Synology's DiskStation servers with a specially designed expansion cable, ensuring easy connection and maximum data throughput. The 6Gb/s connection speed allows the drives in the connected Synology DX1215 to operate as the internal ones of Synology DiskStation.
Green & Easy to Manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. DX1215 will also smartly power on/off with the attached DiskStation, so no user intervention is needed to keep this system running smartly and efficiently.
DX1215 comes with a fast detachable fan module with two 120 X 120mm fans and screwless drive trays, making system components replacement fast and tool-free.
| Hardware Specifications | ||
|---|---|---|
| Applied Models | ||
| Supports creating volumes across different units | FS series:FS1018 19 series:DS2419+ 18 series:DS3018xs 17 series:DS3617xs 15 series:DS3615xs, DS2415+, DS2015xs 13 series:DS2413+ 12 series:DS3612xs 11 series:DS3611xs, DS2411+ |
|
| Notes | To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. DSM version requirement: 5.1-5004 or later version |
|
| Storage | ||
| Drive Bays | 12 | |
| Compatible Drive Type | 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD |
|
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive | Yes | |
| RAID Management through Synology DSM | Yes | |
| External Ports | ||
| Expansion Port | 1 | |
| Appearance | ||
| Size (Height x Width x Depth) | 270 mm x 300 mm x 340 mm | |
| Weight | 9.02 kg | |
| Power | ||
| Power Recovery | Synchronized with the Synology DiskStation | |
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 51.23 W (Access) 21.71 W (HDD Hibernation) |
|
| British Thermal Unit | 174.80 BTU/hr (Access) 74.08 BTU/hr (HDD Hibernation) |
|
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
| Temperature | ||
| Operating Temperature | 5°C to 35°C (40°F to 95°F) | |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Others | ||
| System Fan | 120 mm x 120 mm x 2 pcs | |
| Easy Replacement System Fan | Yes | |
| Noise Level* | 27.2 dB(A) | |
| Notes | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
| Certification | FCC, CE, BSMI, EAC, KC | |
| Environment | RoHS Compliant | |
| Packaging Content | Main Unit X 1 User's Guide X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: Infiniband X 1 |
|
| Κατασκευαστής | Synology |
| Μοντέλο | DX1215 (12-Bay NAS Expansion Unit) |
| Part Number | DX1215 |
| Κατηγορία | NAS Chassis |
| Αριθμός Δίσκων | 12x 2.5"/3.5" |
| Rackmount | Tower |
| Πρόσθετα Χαρακτηριστικά | Expansion Unit |
| Εγγύηση | 5 Έτη |
