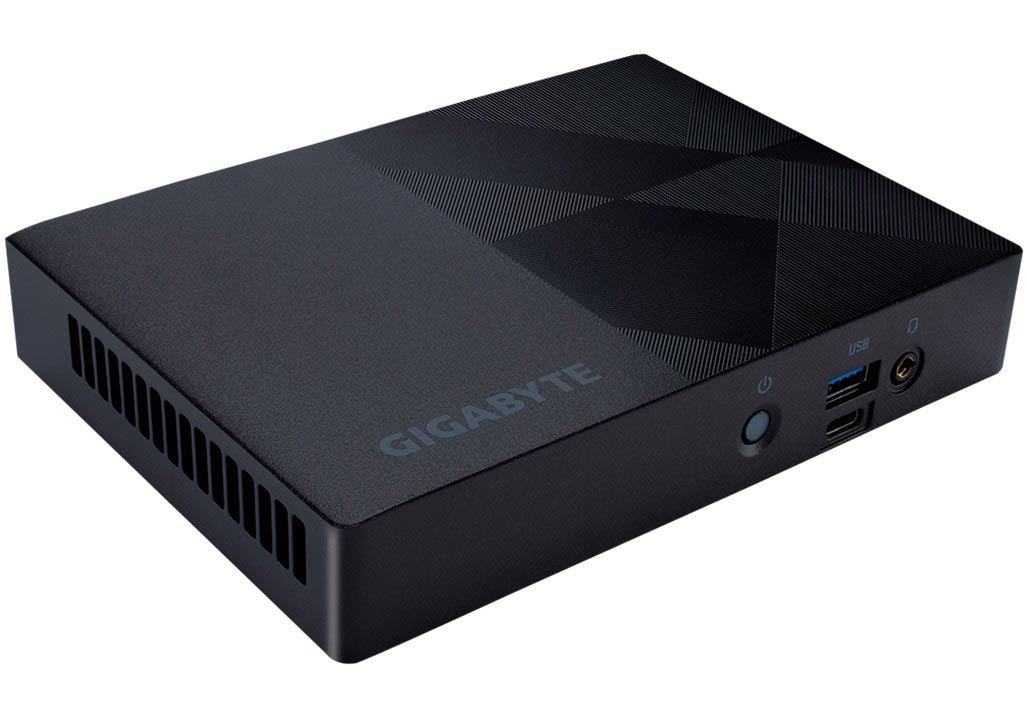

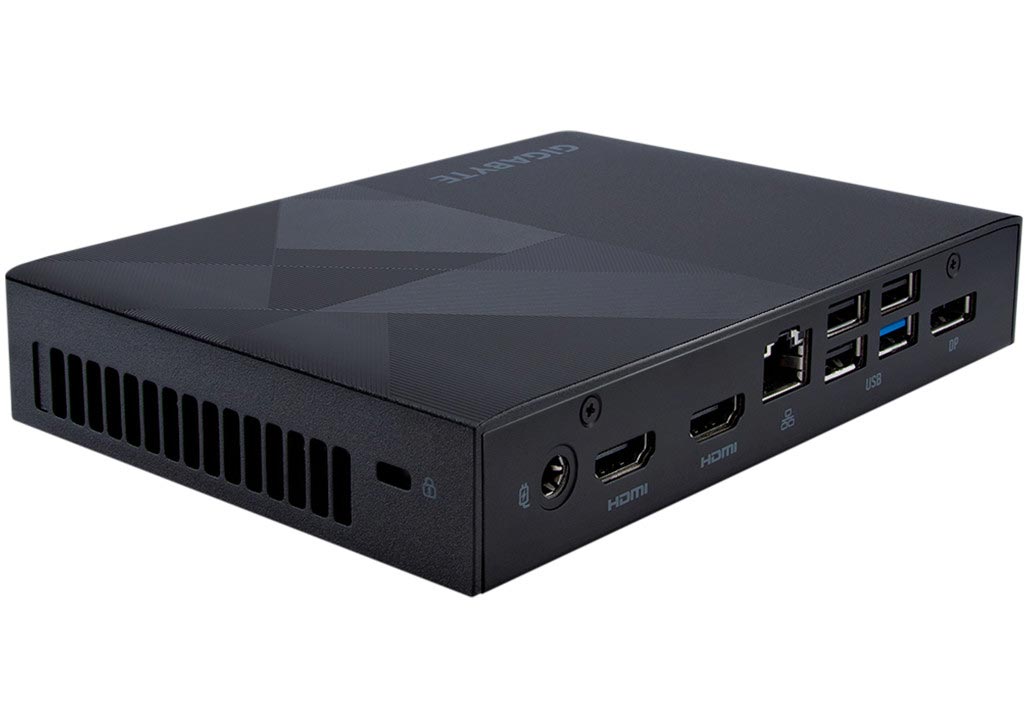

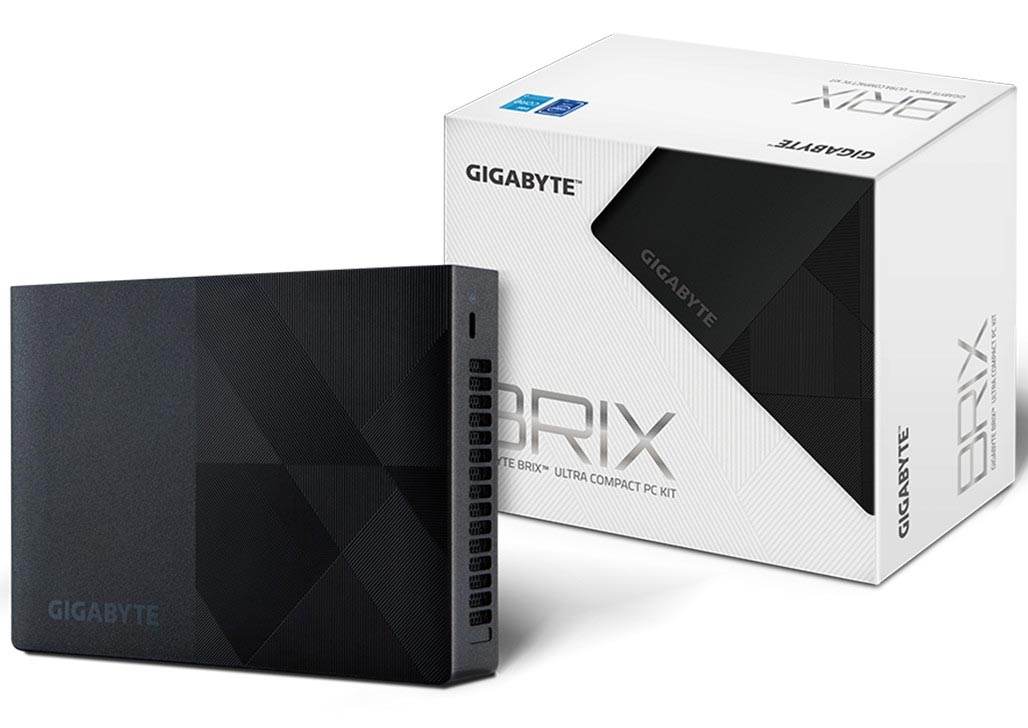

Gigabyte BRIX - i3-N305 with 2x M.2 Support
![Gigabyte BRIX - i3-N305 with 2x M.2 Support [GB-BNi3-N305] Εικόνα 1](https://static.msystems.gr/photos/big_photos/51430.jpg)
![Gigabyte BRIX - i3-N305 with 2x M.2 Support [GB-BNi3-N305] Εικόνα 2](https://static.msystems.gr/photos/big_photos/51430.1.jpg)
![Gigabyte BRIX - i3-N305 with 2x M.2 Support [GB-BNi3-N305] Εικόνα 3](https://static.msystems.gr/photos/big_photos/51430.2.jpg)
Χωρίς ΦΠΑ: 302,42 €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Buy Now - Pay Later
Gigabyte BRIX GB-BNi3-N305
Ultra Compact PC Kit
- Simplified Design, Featherweight Feel
- 12th Gen Intel Core i3 Processor N305
- Intel UHD Graphics 1250
- Super Fast 2.5G LAN + Wi-Fi 6 Module
- 3 x 4K Module - 2 x HDMI 2.1 and 1 x DP 1.4
- 2 x 2280 M.2 Slots for SSD
- 3 x USB 3.2 Gen2 (2 x Type-A + 1 x Type-C) , 3 x USB 2.0 Ports
- Low Noise
- VESA Support

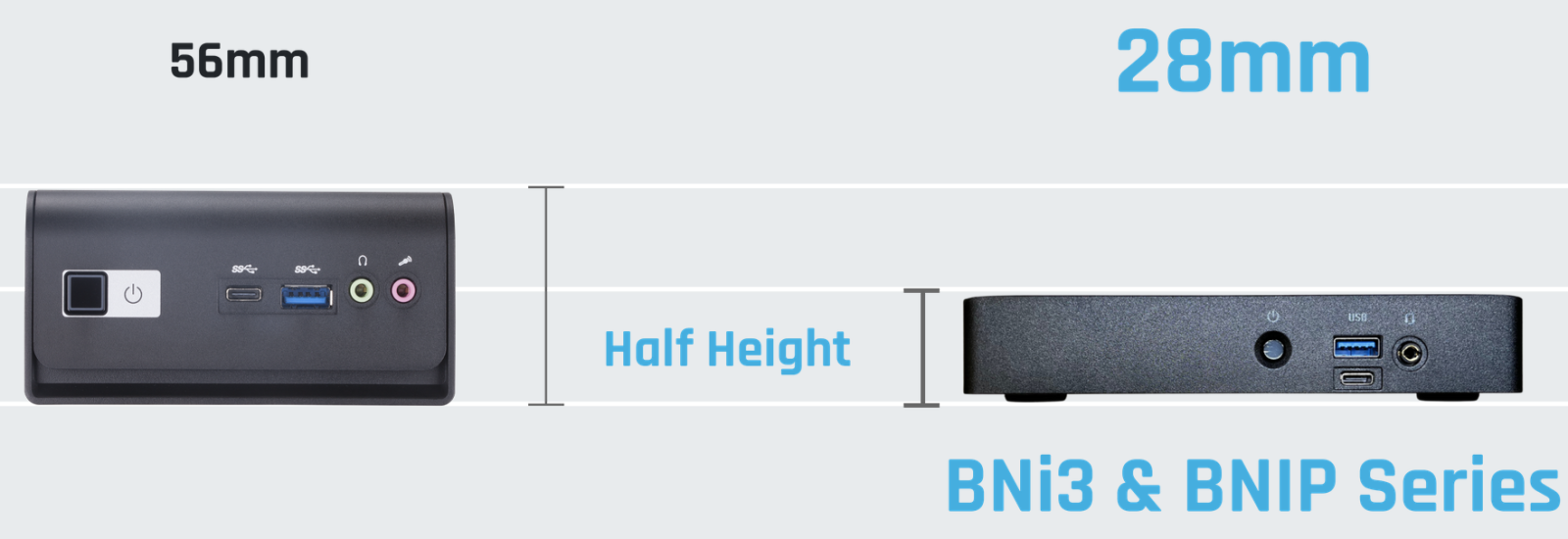

Simplified design, featherweight feel
Despite having a new design, the aesthetic appeal of BRIX has become simpler and slimmer, without compromising on performance and capacity.
.png)

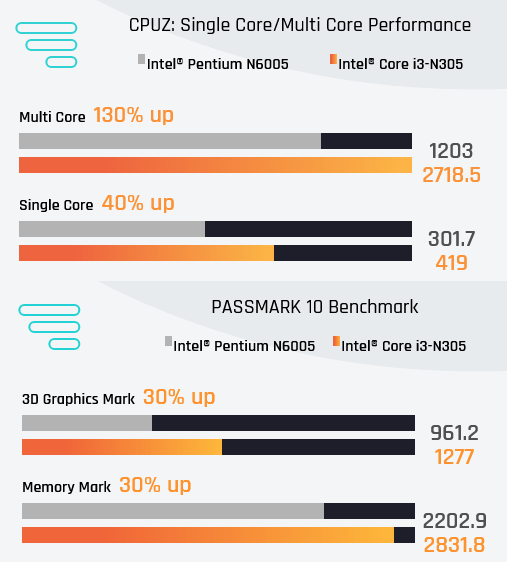

Performance
Intel Processor and Intel Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.
.png)
USB Type-C Connector
The USB Type-C is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 Gen 2, which provides transfer speeds of up to 10 Gb/s.
.png)

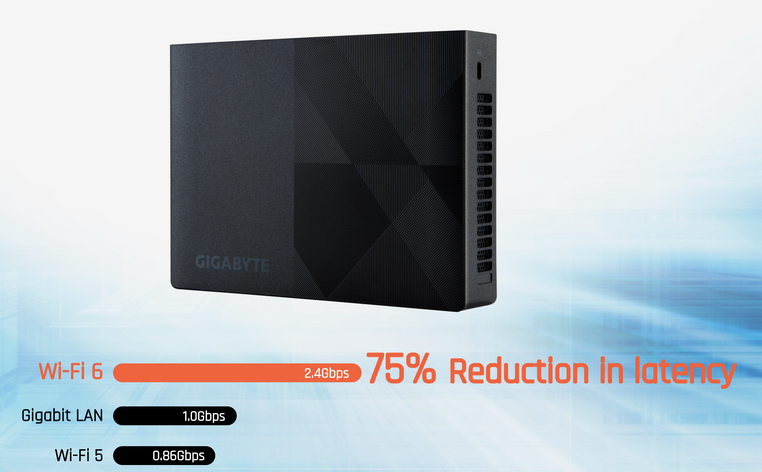

Wi-Fi 6 Technology
Adopting Wi-Fi 6 802.11ax and Bluetooth 5.2, the speed can reach up to 2.4Gbps, which is three times faster than Ethernet. The latency is also reduced by 75% compared to the previous generation. Enjoy seamless world exploration with Wi-Fi 6.
.png)

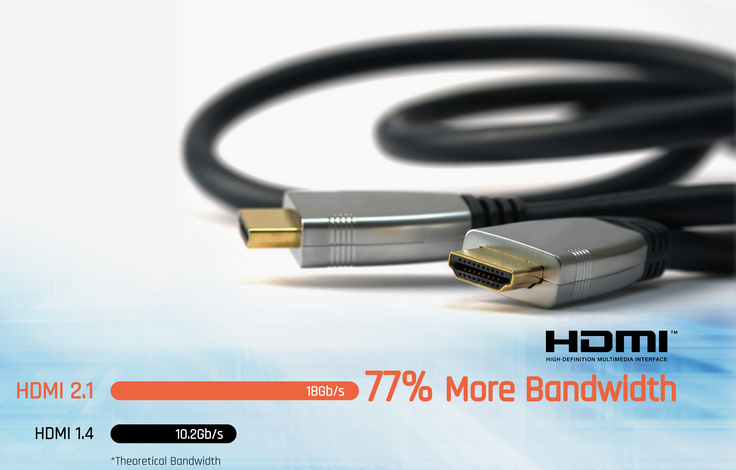

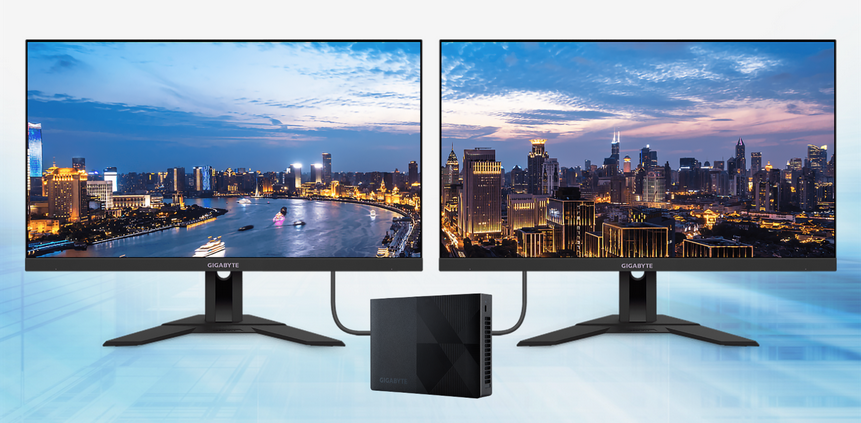

Support HDMI 2.1 / DP 1.4 Dual Output
HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4.
.png)

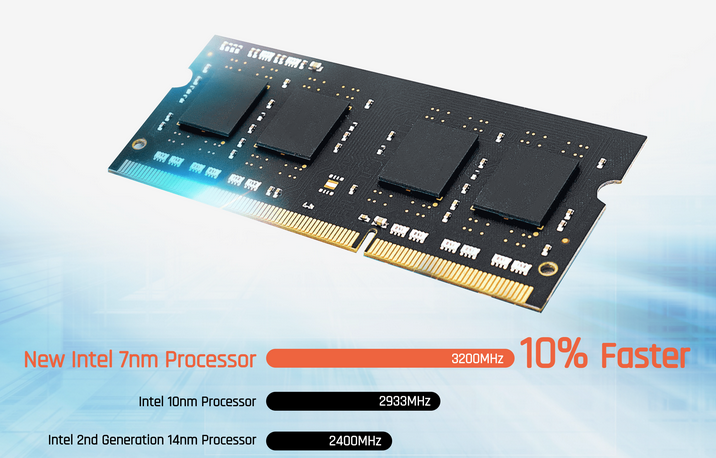

DDR4 3200MHz Support
The GIGABYTE BRIX provides an upgraded memory controller that supports DDR4 memory at up to 3200MHz. DDR4 is a type of synchronous dynamic random-access memory with a double data rate and a high-bandwidth interface. Its primary advantages over its predecessor, DDR3, include higher module density, lower voltage requirements, and higher data transfer speeds.
.png)
Native Cinematic 21:9 Ratio
This unlocks the potential for users to transfer multiple video streams, as well as offering a native cinematic 21:9 ratio (in which most movies are shot), providing the best visual experience for viewers.
.png)
3 x 4K Outputs
The GIGABYTE Intel® Core i3 N-Series Processor series supports up to 3 independent displays with 4K resolution and HDR 10 support, through its HDMI and mini Display ports. This gives users the flexibility to configure their environment without any limitations.
.png)

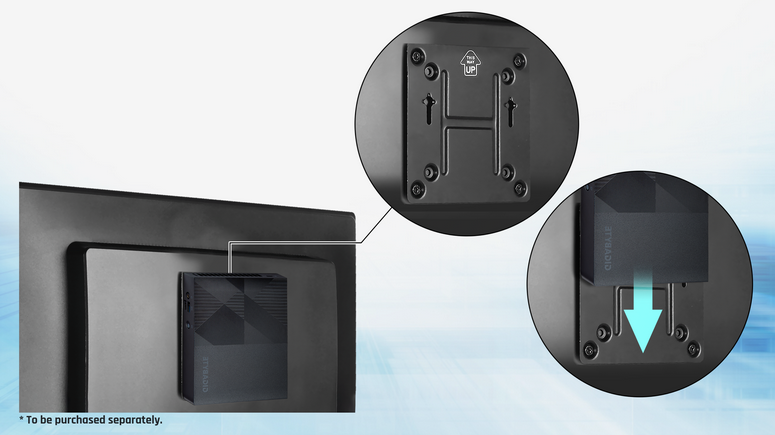

VESA Support
The VESA-ready design of the GIGABYTE BRIX™ allows for easy mounting behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
.png)

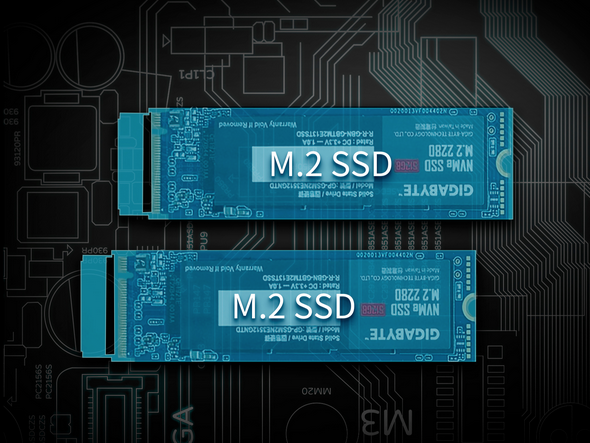

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.
.png)

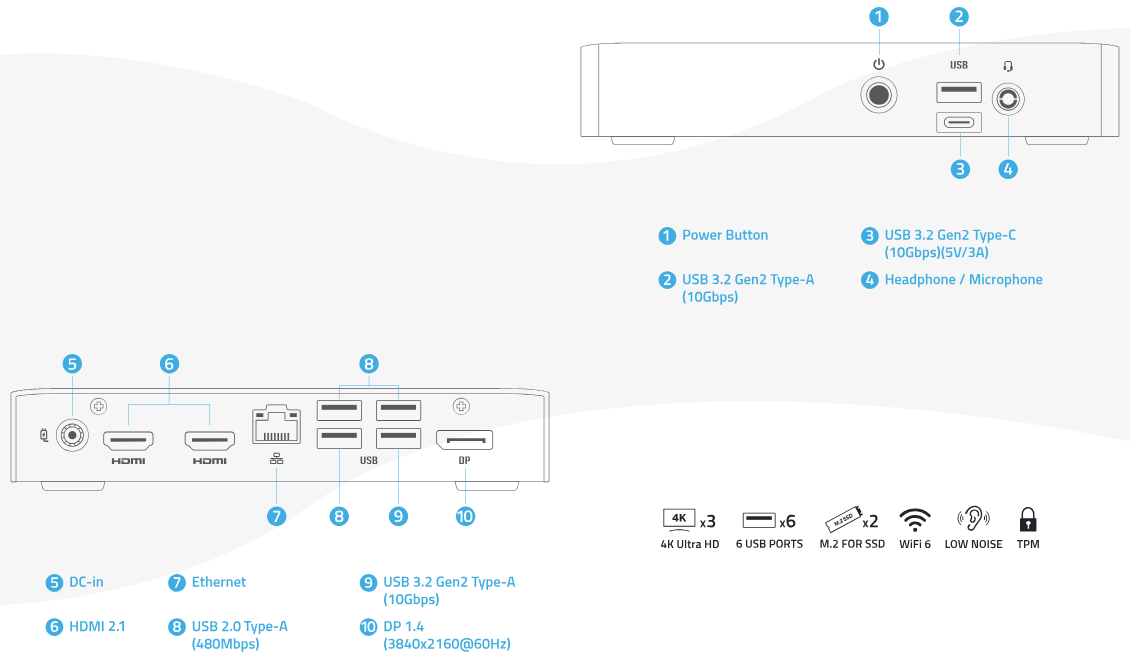

System Overview
.png)
| Specifications | |
| Dimensions / Size | 163.5 x 116.8 x 28.5 mm / 0.54 L |
| Motherboard Size | 154 x 110 mm |
| Max Resolution (HDMI) | 4K@60P HDR10 |
| Max Resolution (DP) | 4K@60P |
| Audio | Realtek ALC897 |
| Expansion Slots | 2x M.2 2280 slots for SSD (1x PCI-e x2 or SATA + 1x PCI-e x2) 1x M.2 2230 slot (PCI-e x1, A-E key slot occupied by the Wi-Fi + Bluetooth card) |
| Kensington lock slot | Yes (x1) |
| Power Supply | Input: AC 100-240V Output: DC 19V/4.74A, 90W |
| VESA | Supports: 75 x 75 and 100 x 100 mm Note: VESA Bracket is not included and has to be purchased seperately. |
| Supported OS | Windows 11 64 bit |
| Environment | System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C |
| Κατασκευαστής | Gigabyte |
| Μοντέλο | BRIX - i3-N305 with 2x M.2 Support |
| Part Number | GB-BNi3-N305 |
| Κατηγορία | NUC / Brix |
| Επεξεργαστής | Intel® Core™ i3 -N305 (Turbo Boost 3.80GHz, 15W, 6MB Intel Smart Cache, Alder Lake-N, 8 Cores / 8 Threads) |
| Μνήμη RAM | Χωρίς Μνήμη RAM - Supports DDR4 3200MHz SO-DIMM, Maximum memory up to 16GB (1x slot) |
| Κάρτα Γραφικών | Ενσωματωμένη - Intel UHD Graphics (32EU, 1.25 GHz) |
| Δίσκος | Χωρίς Δίσκο |
| Υποδοχές Σκληρών Δίσκων | M.2 SSD - 2x M.2 2280 slots for SSD (1x PCI-e x2 or SATA + 1x PCI-e x2) |
| Λειτουργικό Σύστημα | Χωρίς Λειτουργικό |
| Πρόσθετα Χαρακτηριστικά | HDMI x2 (v 2.1) DisplayPort x1 (v 1.4, HBR2) Wi-Fi 6 Intel AX101 (1x1) Bluetooth (v 5.2) USB - 3x USB 2.0 Type-A, 2x USB 3.2 Gen 2 Type-A LAN - Realtek RTL8125 2.5GbE USB Type-C - 1x USB 3.2 Gen 2 Type-C |
| Εγγύηση | 3 Έτη |
