Intel NUC Pro Kit - i3-1315U with 2.5¨ HDD Support
![Intel NUC Pro Kit - i3-1315U with 2.5¨ HDD Support [RNUC13L3HI30002] Εικόνα 1](https://static.msystems.gr/photos/big_photos/46402.jpg)
![Intel NUC Pro Kit - i3-1315U with 2.5¨ HDD Support [RNUC13L3HI30002] Εικόνα 2](https://static.msystems.gr/photos/big_photos/46402.1.jpg)
![Intel NUC Pro Kit - i3-1315U with 2.5¨ HDD Support [RNUC13L3HI30002] Εικόνα 3](https://static.msystems.gr/photos/big_photos/46402.2.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Buy Now - Pay Later
| Specifications | |
| Processor Included | Intel® Core™ i3-1315U Processor (10M Cache, up to 4.50 GHz) |
| Supported Operating Systems | Windows 11 Home, Windows 11 Pro, Windows 10 IoT Enterprise, Red Hat Linux, Ubuntu |
| CPU Specifications | |
| Total Cores | 6 |
| Total Threads | 8 |
| Max Turbo Frequency | 4.50 GHz |
| Memory & Storage | |
| Max Memory Size (dependent on memory type) | 64 GB |
| # of Memory Slots | 2 |
| Memory Types | DDR4-3200 1.2V SODIMMs |
| Max # of Memory Channels | 2 |
| ECC Memory Supported | No |
| Internal Drive Form Factor | M.2 and 2.5" Drive |
| # of Internal Drives Supported | 3 |
| M.2 Card Slot (storage) | 22x80 NVMe (M); 22x42 SATA (B) |
| I/O Specifications | |
| Graphics Output | 2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C |
| # of Displays Supported | 4 |
| # of Thunderbolt™ Ports | 2x Thunderbolt™ 4 |
| # of USB Ports | 4 |
| USB Configuration | Front: 2x USB 3.2 Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0 Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers) |
| Total # of SATA Ports | 1 |
| Serial Port via Internal Header | No |
| Audio (back channel + front channel) | Front panel: 3.5mm headphone/mic jack |
| Integrated LAN | Intel® Ethernet Controller i226-V |
| Wireless Included | Intel® Wi-Fi 6E AX211 (Gig+) |
| Bluetooth Version | 5.3 |
| M.2 Card Slot (wireless) | 22x30 (E) |
| Additional Headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
| Expansion Options | |
| PCI Express Revision | Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) |
| PCI Express Configurations | PCIe x4 Gen 4: M.2 22x80 (key M) PCIe x1 Gen 3: M.2 22x42 (key B) PCIe x1: M.2 22x30 (key E) |
| Package Specifications | |
| DC Input Voltage Supported | 12-20 VDC |
| Chassis Dimensions | 117 x 112 x 54 [mm] (LxWxH) |
| Board Form Factor | UCFF (4" x 4") |
| Advanced Technologies | |
| Intel® HD Audio Technology | Yes |
| Intel® Optane™ Memory Supported | No |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Virtualization Technology (VT-x) | Yes |
| Security & Reliability | |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® ME Firmware Version | 16.1 |
| Intel® AES New Instructions | Yes |
Top-Tier Performance for the Home and Office
Introducing Arena Canyon, the NUC 13 Pro from Intel and the latest addition to Simply NUC’s 4×4 business NUC lineup. Arena Canyon offers the perfect combination of size, performance, reliability, and versatility needed to drive modern businesses. The NUC 13 Pro delivers outsized performance in its 4×4 form factor with the latest in technology, from Intel’s 13th Gen Raptor Lake 1315U processor to Thunderbolt 4 and Wi-Fi 6E, delivering top-tier performance for the home and office.
Protected and Productive, 24/7
The NUC 13 Pro i3 is a feature-rich device with a plethora of I/O options, equipped with dual HDMI 2.1 ports, dual Thunderbolt 4, and four USB-A ports as standard. Further expand the functionality of your unit via the replaceable lid on both the H and K models, making Arena Canyon adaptable to your specific use case. Select Arena Canyon SKUs comes with Intel vPro technology, making it ideal for office deployments with its remote manageability and added hardware-level security features. From performing remote updates to securing your files from intrusion, the NUC 13 Pro will keep you protected and productive, 24/7.
A Clean, Seamless, and Powerful Mini PC Experience
Networking is a breeze with Arena Canyon’s 2.5Gb LAN port and can be expanded to add an additional 1Gb port via the replaceable lid, allowing connection redundancy and increased networking capabilities, with the added perk of an additional USB 3.0 port. Not a fan of cables? No problem. Arena Canyon comes equipped with Wi-Fi 6E and Bluetooth 5.3, allowing you to ditch the cables to get a clean, seamless, and powerful mini PC experience.
.png)

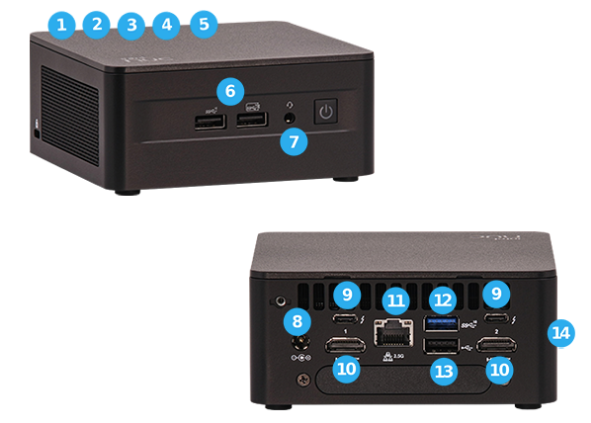

- Intel® Core™ i3-1315U
- Intel® UHD Graphics
- 2x DDR4-3200 SODIMMs, 64GB max
- M.2 22×80 for NVMe Gen 4
- Intel® Wi-Fi 6E AX211 + Bluetooth 5.3
- 2x front USB 3.2 ports
- 1x 3.5mm audio jack
- 1x 20VDC 120W power supply
- 2x Thunderbolt 4 ports
- 2x HDMI 2.1 ports
- 1x 2.5Gb LAN
- 1x rear USB 3.2 port
- 1x rear USB 2.0 port
- 1x Kensington lock
| Κατασκευαστής | Intel |
| Μοντέλο | NUC Pro Kit - i3-1315U with 2.5¨ HDD Support |
| Part Number | RNUC13L3HI30002 |
| Κατηγορία | NUC / Brix |
| Επεξεργαστής | Intel® Core™ i3 -1315U (3.30GHz - Turbo Boost 4.50GHz, 10MB Cache, 13th Gen Raptor Lake, 6 Cores / 8 Threads) |
| Μνήμη RAM | Χωρίς Μνήμη RAM |
| Κάρτα Γραφικών | Ενσωματωμένη Intel UHD Graphics |
| Δίσκος | Χωρίς Δίσκο |
| Υποδοχές Σκληρών Δίσκων | M.2 SSD and 2.5" HDD or SSD (M.2 Slot Supports: 22x80 NVMe (M); 22x42 SATA (B)) |
| Λειτουργικό Σύστημα | Χωρίς Λειτουργικό |
| Πρόσθετα Χαρακτηριστικά | HDMI x2 V2.1 - TMDS Compatible Wi-Fi - Wi-Fi 6E AX211(Gig+) Bluetooth v5.3 Thunderbolt 4 - 2x ThunderBolt 4 / USB 4.0 Type-C - Supports DisplayPort 1.4a LAN 2.5G (Intel® Ethernet Controller i226-LM) USB Type-C M.2 Slot |
| Εγγύηση | 3 Έτη |
