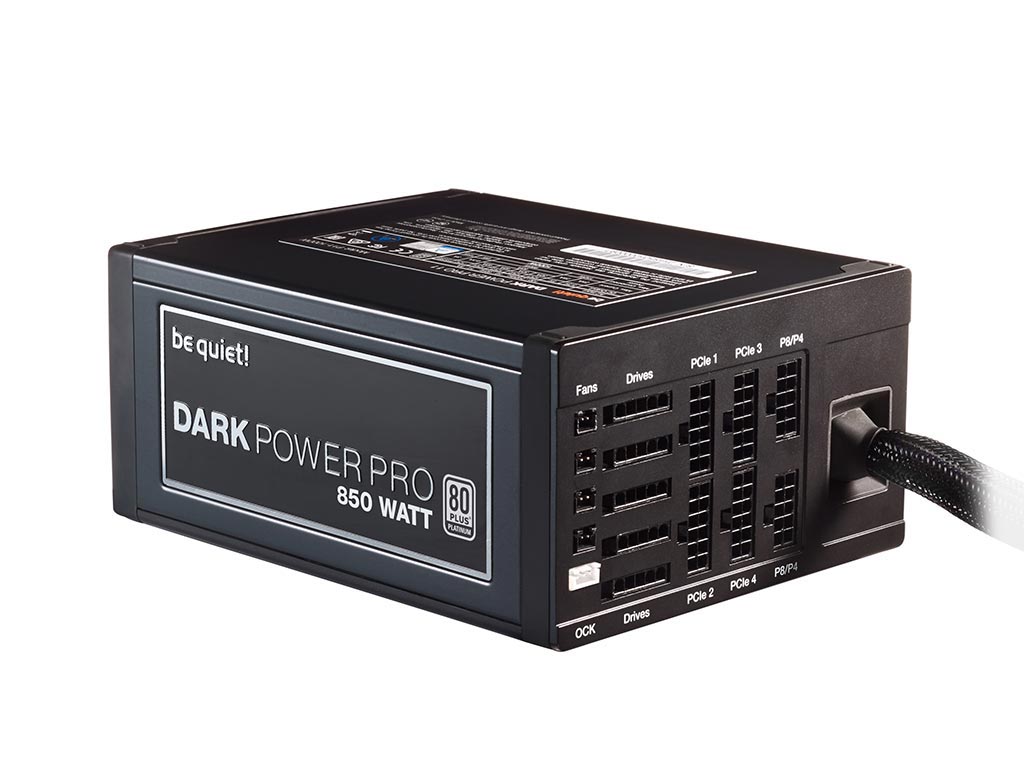

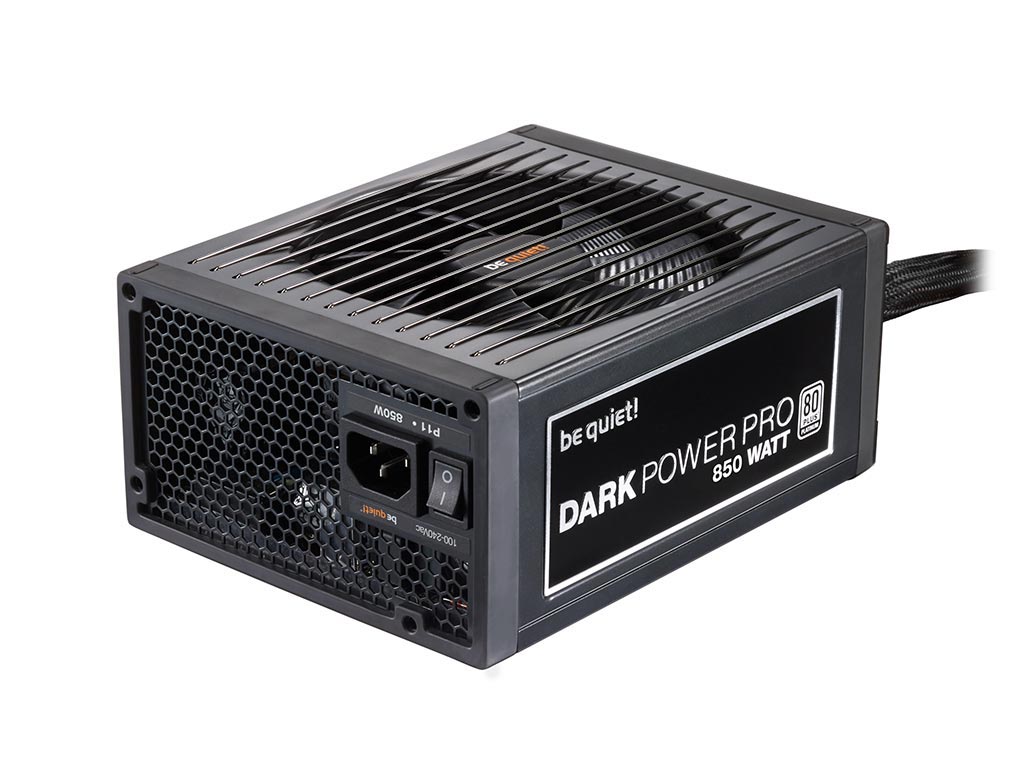

Be Quiet! Dark Power Pro 11 850W Platinum Rated Power Supply
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
80 PLUS® PLATINUM CERTIFIED
One of the highest efficiency certificates available
Dark Power Pro 11 850W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 94%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation. The standby drain is below 0.1 watts.
SILENT WINGS 3 FAN
Equipped with the best fan technology be quiet! offers
The decoupled be quiet! Silent Wings 3 135mm fan provides virtually inaudible operation. This is thanks to its unique, airflow-optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor for less vibration, super-long life and minimal power consumption.
FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Dark Power Pro 11 850W is funnel shaped. This causes an increased throughput of air, which results in higher cooling performance.
READY FOR OVERCLOCKING
Pushing the performance of your PSU to the max
Dark Power Pro 11 850W is particularly suitable for overclocking, thanks to its strong and stable 12V-rails. The overclocking key empowers you with full control for overclocking by manual switching between the default four 12V-rail mode and the alternative massive single-rail operation.
EQUIPPED WITH HIGH-END FEATURES
Build powerful multi-GPU systems with confidence
Dark Power Pro 11 offers 850W of continuous power with four independent 12V-rails for excellent signal stability and five PCI express connectors for multi-GPU systems. Up to four case fans can be connected to, and regulated by the PSU.
MAXIMUM CONVENIENCE
Semi-modular cables

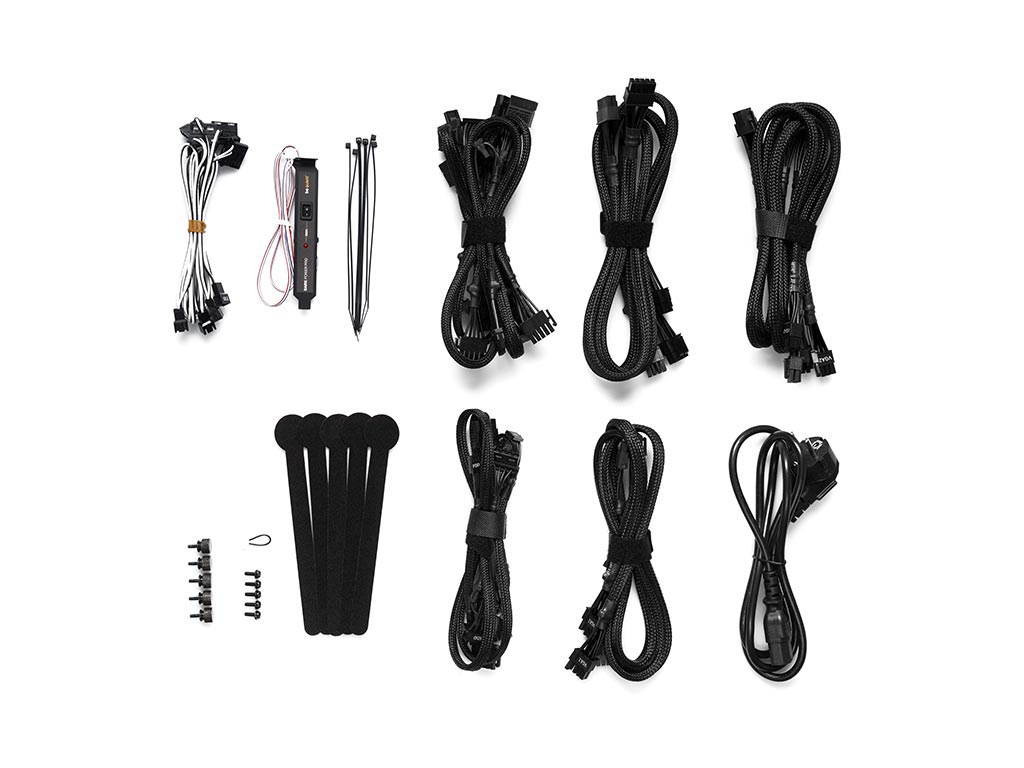

The maximum utility afforded by extra-long sleeved cables of up to 120cm and modular cable management simplifies component installation and reduces annoying clutter. This succeeds in increasing the airflow and improving the cooling in even the largest PC cases.
STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
Experience the most technologically advanced power supply be quiet! has ever built! Using LLC and Synchronous Rectifier (SR) technology it provides unmatched signal stability and unbeatable power efficiency. It is also equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation for the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Dark Power Pro 11 850W. That is why we have built exclusively high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C which ensures stability, reliability and a long operating life.
General data | |
Continuous power(W) | 850 |
Peak power(W) | 950 |
Form factor ATX 12V | Version 2.4 |
Form factor EPS 12V | Version 2.92 |
Modular Cable management | ✓ |
Topology | Full bridge + LLC + SR + DC/DC |
Wire-free design(DC-side) | - |
Voltage(Vac) | 100 - 240 |
Frequency(Hz) | 50 - 60 |
Input current (A) | 13 / 7 |
PFC | active |
Power factor at 100% load | >0.99 |
Compliant to Intel C6/C7 | ✓ |
Power consumption in standby(W) | <0.10 |
Average life time(h / 25°C) | 100,000 |
Average life time (h / 25°C) | 40 |
Output | |
12V rails(multi-rail operation) | 4 |
12V single rail operation | ✓ |
Overclocking key | ✓ |
+3.3V(A) | 25 |
+5V(A) | 25 |
+12V1(A) | 30 |
+12V2(A) | 30 |
+12V3(A) | 35 |
+12V4(A) | 35 |
+12V5(A) | - |
+12V6(A) | - |
-12V(A) | 0.5 |
+5Vsb (A) | 3 |
Max. combined power 12V(W) | 840 |
Max. combined power 3.3V + 5V (W) | 140 |
Hold-up time (ms @ 100%) | 20.84 |
Power good signal | 100 - 500ms |
Fan / Cooling technology | |
Fan type | Silent Wings 3 |
+SilentWings | ✓ |
Motor technology | 6-pole fan motor |
Bearing technology | FDB |
Fan size (mm) | 135 |
Max. fan speed (rpm) | 1500 |
Temperature control for case fans | ✓ |
dB(A) at 20% load | 10.4 |
dB(A) at 50% load | 10.4 |
dB(A) at 100% load | 20.1 |
Protection | |
OCP(over current protection) | ✓ |
OVP(over Voltage protection) | ✓ |
UVP(under Voltage protection) | ✓ |
SCP(short circuit protection) | ✓ |
OTP(over temperature protection) | ✓ |
OPP(over power protection) | ✓ |
Safety Certifiaction | |
CE | ✓ |
CB | ✓ |
TÜV | ✓ |
Nemko (N) | - |
Semko (S) | - |
Fimko (FI) | - |
Demko (D) | - |
FCC | ✓ |
cRUus | - |
cTUVus | ✓ |
RCM (Australia) | ✓ |
BSMI | - |
CU (Russia) | ✓ |
CCC | - |
Eco / Efficiency | |
80 PLUS certification | Platinum |
Efficiency (%) at 230V, 20% load | 92.1 |
Efficiency (%) at 230V, 50% load | 94 |
Efficiency (%) at 230V, 100% load | 92.7 |
Environmental directives | |
Energy Star | 6.0 |
ErP | ✓ |
WEEE | ✓ |
RoHs | ✓ |
Cable management / Connectors | |
Multi-GPU ready | ✓ |
Cable management | Semi-Modular |
Sleeved cables | Sleeved cables |
Flat cables | - |
Cable length to motherboard(cm) | 60 |
Cable length to first connector(cm) | 60 |
Maximum cable length(cm | 120 |
All-in-one cable (SATA/PATA/FDD) | ✓ |
No. of cables | 19 |
ATX-Motherboard (20+4-pin) | 1 |
P8 (CPU) | 1 |
P4+4 (CPU) | 1 |
P4(CPU) | - |
PCI-e 6-pin (GPU) | 1 |
PCI-e 6+2-pin (GPU) | 6 |
PATA 4-pin | 8 |
SATA 15-pin (HDD, Drives) | 8 |
FDD (Floppy) | 2 |
External fan connectors | 4 |
Casing | |
Dimensions without cable (L x W x D), (mm) | 193 x 150 x 86 |
Weight (kg) | 2.39 |
Color | Black |
Accessories | |
Thumb screws | ✓ |
Screws | ✓ |
Cable ties | ✓ |
Velcro cable ties | ✓ |
Box/Bag for PSU/Cables | ✓ |
User manual languages> | DE, EN, ES, FR, PL, RU |
OCK slot bracket with switch / OCK jumper | ✓ |
SFX-to-ATX adapter bracket | - |
Service | |
Warranty (Years) | 5 |
Express replacement service in first year | DE, FR |
International hotline / free of charge | ✓ / DE, FR |
Logistics data | |
Article number | BN253 |
EAN code | 4260052183786 |
Dimensions, package (L x W x H), (mm) | 348 x 272 x 118 |
Gross weight, package (kg) | 4.47 |
Pieces per packaging unit | 4 |
Dimensions, shipping box (L x W x H), (mm) | 514 x 305 x 378 |
Gross weight, shipping box (kg) | 19.17 |
Κατασκευαστής | Be Quiet! |
Μοντέλο | Dark Power Pro 11 850W Platinum Rated Power Supply |
Part Number | BN253 |
Κατηγορία | Τροφοδοτικά |
Ισχύς | 850 Watt |
Εύρος Ισχύος | 800 - 899 Watt |
Αποσπώμενα Καλώδια | Semi Modular |
Efficiency | 80 Plus Platinum |
Μέγεθος Ανεμιστήρα | 135mm |
Συνδέσεις Τροφοδοσίας | 1x 24-pin ATX 1x 4-pin EPS 1x 8-pin EPS 2x Floppy 8x 4-pin Molex 8x SATA 6x PCIe (6+2pin) |
Εγγύηση | 5 Έτη |
