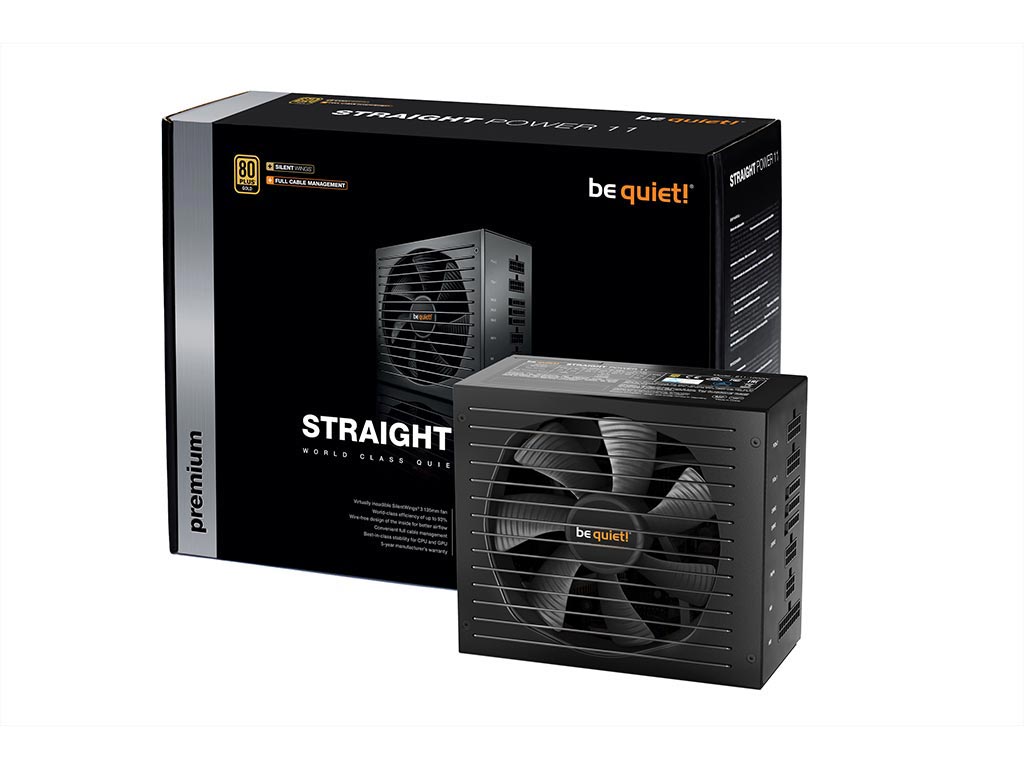

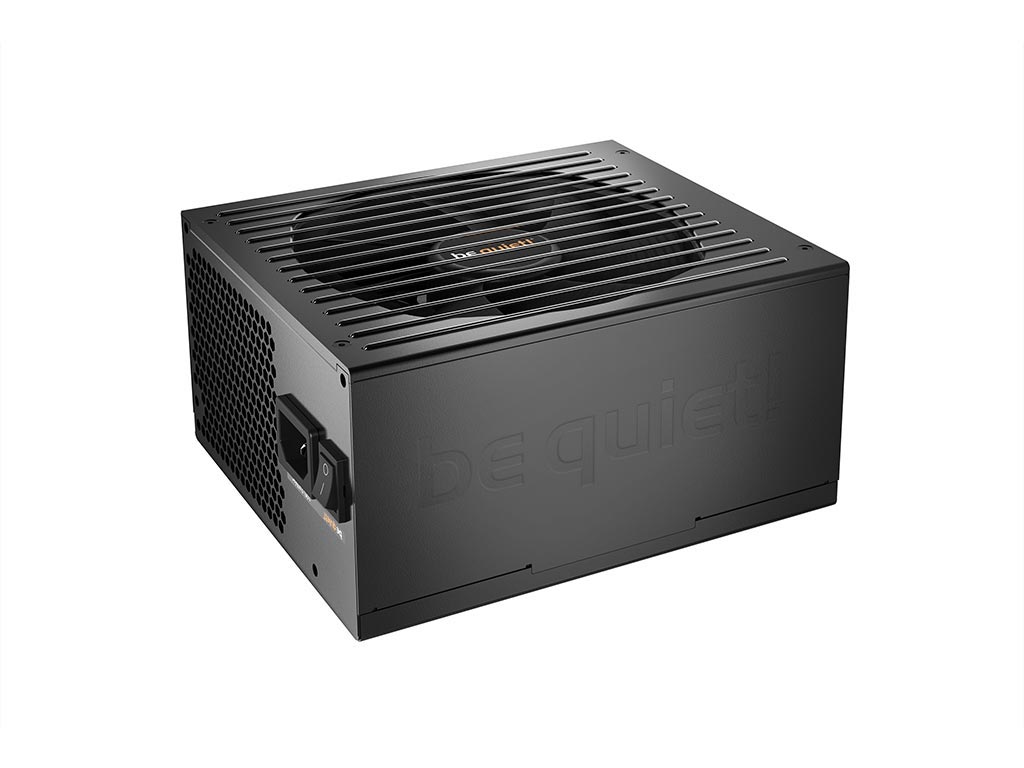

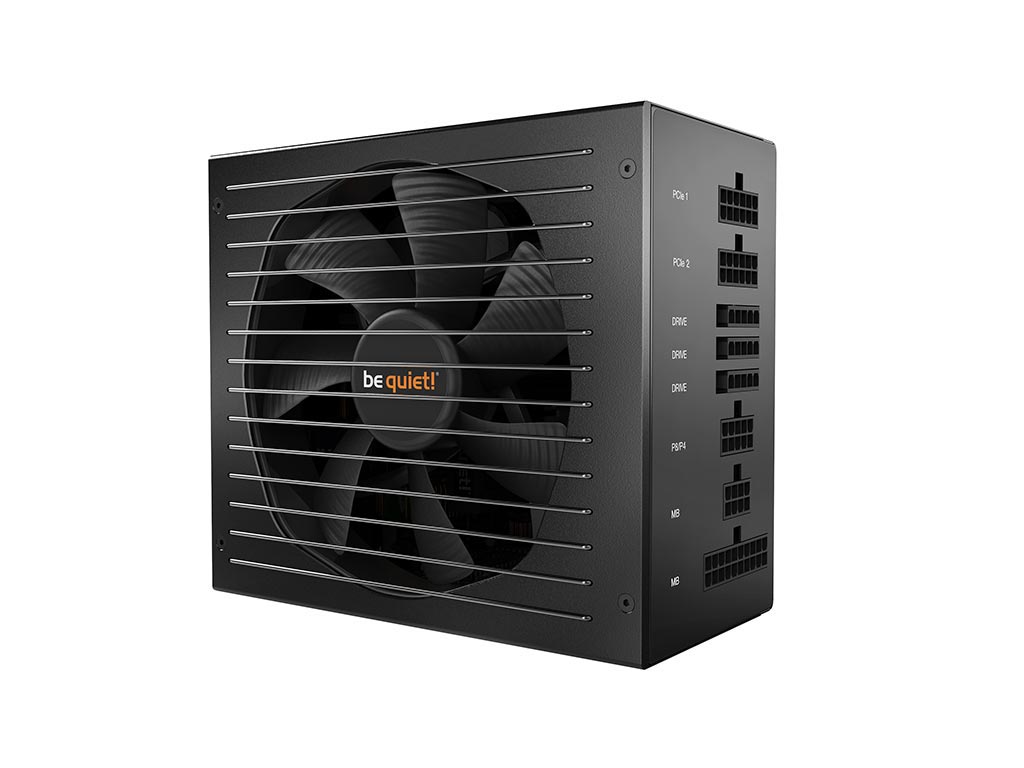

Be Quiet! Straight Power 11 650W Gold Rated Power Supply
![Be Quiet! Straight Power 11 650W Gold Rated Power Supply [BN282] Εικόνα 1](https://static.msystems.gr/photos/big_photos/38874.jpg)
![Be Quiet! Straight Power 11 650W Gold Rated Power Supply [BN282] Εικόνα 2](https://static.msystems.gr/photos/big_photos/38874.1.jpg)
![Be Quiet! Straight Power 11 650W Gold Rated Power Supply [BN282] Εικόνα 3](https://static.msystems.gr/photos/big_photos/38874.2.jpg)
![Be Quiet! Straight Power 11 650W Gold Rated Power Supply [BN282] Εικόνα 4](https://static.msystems.gr/photos/big_photos/38874.3.jpg)
![Be Quiet! Straight Power 11 650W Gold Rated Power Supply [BN282] Εικόνα 5](https://static.msystems.gr/photos/big_photos/38874.4.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Buy Now - Pay Later
SILENT WINGS 3 FAN
Provides virtually inaudible operation
The high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
FUNNEL-SHAPED FAN OPENING
Higher cooling performance
The fan inlet of the Straight Power 11 650W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.
WIRE-FREE DESIGN INSIDE THE PSU

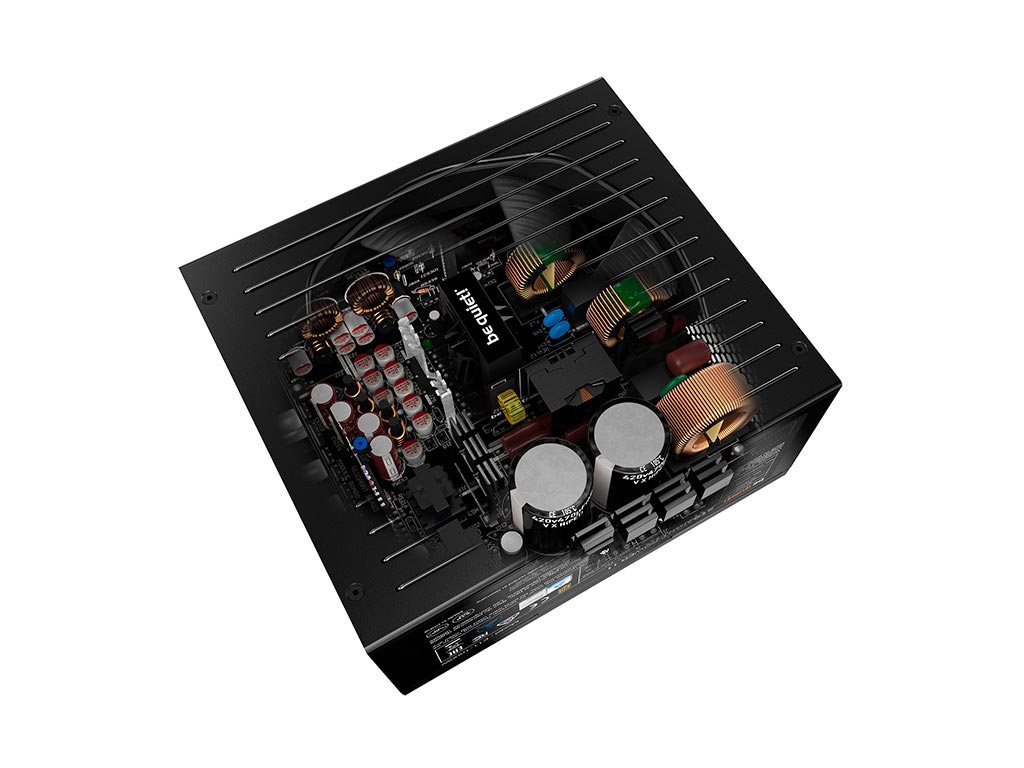

An absolute innovation: The Straight Power 11 650W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.

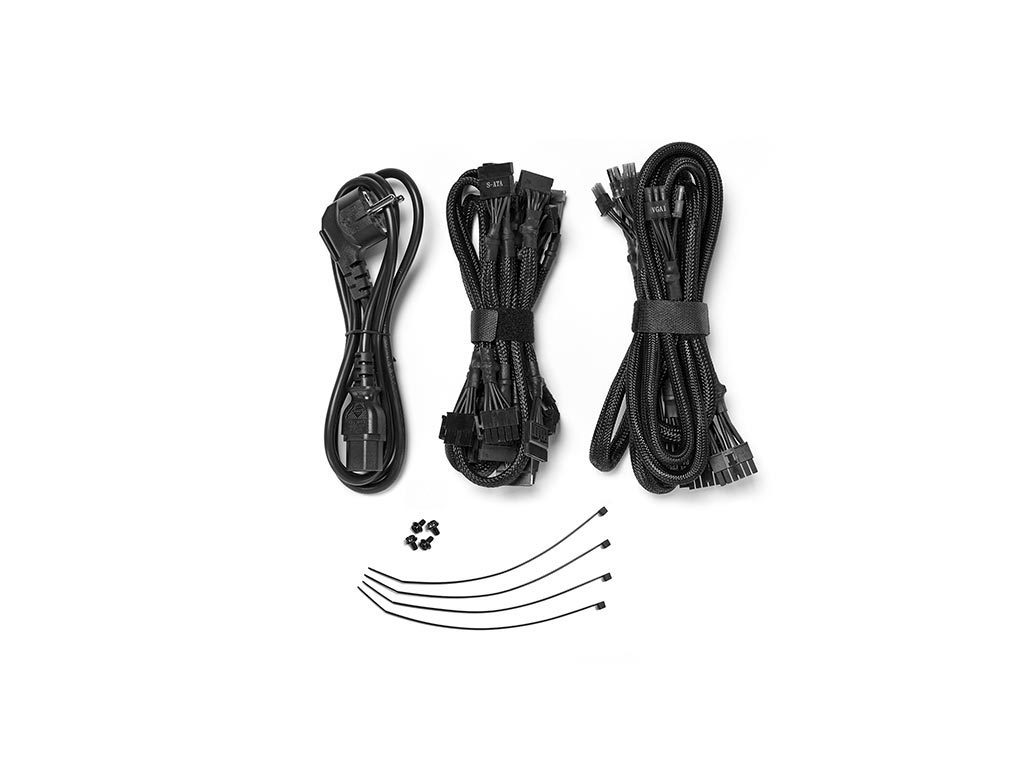

MODULAR CABLES
Utmost convenience and compatibility
Thanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.
80 PLUS® GOLD CERTIFIED
Impressively high efficiency
Straight Power 11 650W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.
HIGH-CLASS TECHNOLOGIES
Compatibility for the systems of tomorrow
The use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.
JAPANESE 105° CAPACITORS
A testament to high quality
Only the best components are used in Straight Power 11 650W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
| General data | |
| Continuous power(W) | 650 |
| Peak power(W) | 720 |
| Form factor ATX 12V | Version 2.4 |
| Form factor EPS 12V | Version 2.92 |
| Modular Cable management | ✓ |
| Topology | LLC + SR + DC/DC |
| Wire-free design(DC-side) | ✓ |
| Voltage(Vac) | 100 - 240 |
| Frequency(Hz) | 50 - 60 |
| Input current (A) | 8 / 4 |
| PFC | active |
| Power factor at 100% load | >0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby(W) | <0.12 |
| Average life time(h / 25°C) | 100,000 |
| Average life time (h / 25°C) | 40 |
| Output | |
| 12V rails(multi-rail operation) | 4 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V(A) | 24 |
| +5V(A) | 24 |
| +12V1(A) | 18 |
| +12V2(A) | 18 |
| +12V3(A) | 22 |
| +12V4(A) | 22 |
| +12V5(A) | - |
| +12V6(A) | - |
| -12V(A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V(W) | 649.2 |
| Max. combined power 3.3V + 5V (W) | 140 |
| Hold-up time (ms @ 100%) | 19.9 |
| Power good signal | 100 - 500ms |
| Fan / Cooling technology | |
| Fan type | Silent Wings 3 |
| +SilentWings | ✓ |
| Motor technology | 6-pole fan motor |
| Bearing technology | FDB |
| Fan size (mm) | 135 |
| Max. fan speed (rpm) | 1500 |
| Temperature control for case fans | - |
| dB(A) at 20% load | 8.93 |
| dB(A) at 50% load | 9.8 |
| dB(A) at 100% load | 17.52 |
| Protection | |
| OCP(over current protection) | ✓ |
| OVP(over Voltage protection) | ✓ |
| UVP(under Voltage protection) | ✓ |
| SCP(short circuit protection) | ✓ |
| OTP(over temperature protection) | ✓ |
| OPP(over power protection) | ✓ |
| Safety Certifiaction | |
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| Nemko (N) | - |
| Semko (S) | - |
| Fimko (FI) | - |
| Demko (D) | - |
| FCC | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| RCM (Australia) | ✓ |
| BSMI | ✓ |
| CU (Russia) | ✓ |
| CCC | ✓ |
| Eco / Efficiency | |
| 80 PLUS certification | Gold |
| Efficiency (%) at 230V, 20% load | 91.5 |
| Efficiency (%) at 230V, 50% load | 93 |
| Efficiency (%) at 230V, 100% load | 91 |
| Environmental directives | |
| Energy Star | 6.1 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHs | ✓ |
| Cable management / Connectors | |
| Multi-GPU ready | ✓ |
| Cable management | Modular |
| Sleeved cables | Sleeved Cables |
| Flat cables | - |
| Cable length to motherboard(cm) | 60 |
| Cable length to first connector(cm) | 55 |
| Maximum cable length(cm | 115 |
| All-in-one cable (SATA/PATA/FDD) | ✓ |
| No. of cables | 9 |
| ATX-Motherboard (20+4-pin) | 1 |
| P8 (CPU) | - |
| P4+4 (CPU) | 1 |
| P4(CPU) | - |
| PCI-e 6-pin (GPU) | - |
| PCI-e 6+2-pin (GPU) | 4 |
| PATA 4-pin | 3 |
| SATA 15-pin (HDD, Drives) | 9 |
| FDD (Floppy) | 1 |
| External fan connectors | - |
| Casing | |
| Dimensions without cable (L x W x D), (mm) | 160 x 150 x 86 |
| Weight (kg) | 1.54 |
| Color | Black |
| Accessories | |
| Thumb screws | - |
| Screws | ✓ |
| Cable ties | ✓ |
| Velcro cable ties | - |
| Box/Bag for PSU/Cables | - |
| User manual languages> | DE, EN, ES, FR, PL, RU |
| OCK slot bracket with switch / OCK jumper | - |
| SFX-to-ATX adapter bracket | - |
| Service | |
| Warranty (Years) | 5 |
| Express replacement service in first year | DE, FR |
| International hotline / free of charge | ✓ / DE, FR |
| Logistics data | |
| Article number | BN282 |
| EAN code | 4260052185773 |
| Dimensions, package (L x W x H), (mm) | 328 x 248 x 102 |
| Gross weight, package (kg) | 2.94 |
| Pieces per packaging unit | 6 |
| Dimensions, shipping box (L x W x H), (mm) | 651 x 282 x 346 |
| Gross weight, shipping box (kg) | 18.98 |
| Κατασκευαστής | Be Quiet! |
| Μοντέλο | Straight Power 11 650W Gold Rated Power Supply |
| Part Number | BN282 |
| Κατηγορία | Τροφοδοτικά |
| Ισχύς | 650 Watt |
| Εύρος Ισχύος | 600 - 699 Watt |
| Αποσπώμενα Καλώδια | Full Modular |
| Efficiency | 80 Plus Gold |
| Μέγεθος Ανεμιστήρα | 135mm |
| Συνδέσεις Τροφοδοσίας | 1x 24-pin ATX 1x Floppy 3x 4-pin Molex 9x SATA 4x PCIe |
| Form Factor | ATX |
| Εγγύηση | 5 Έτη |
