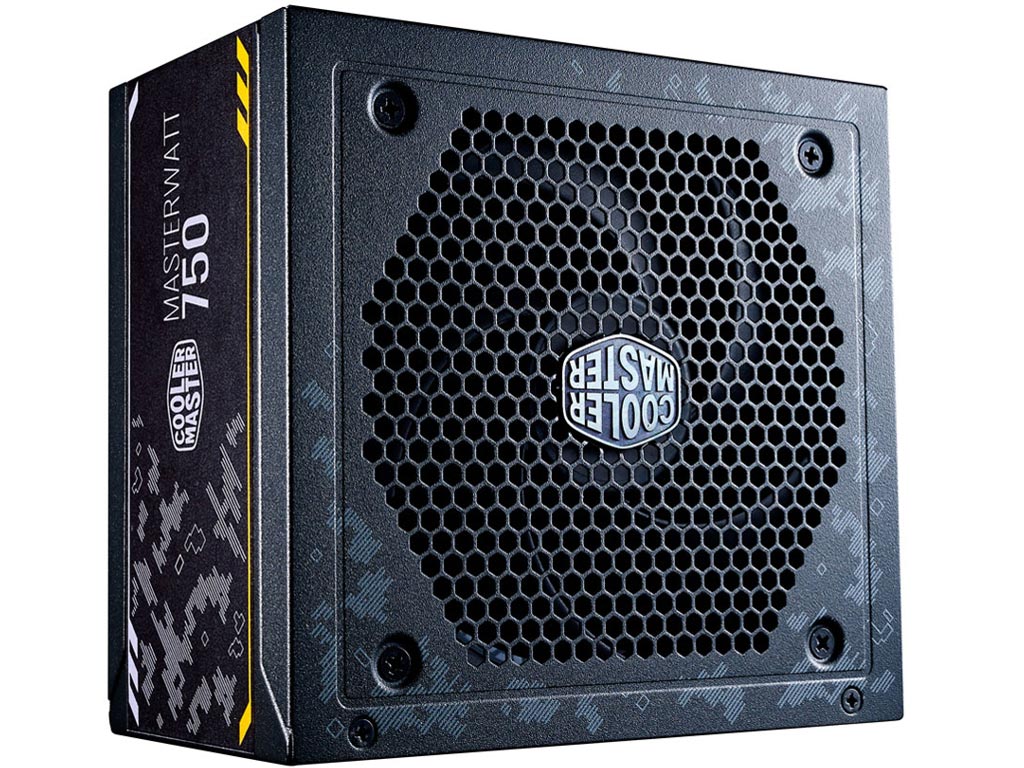

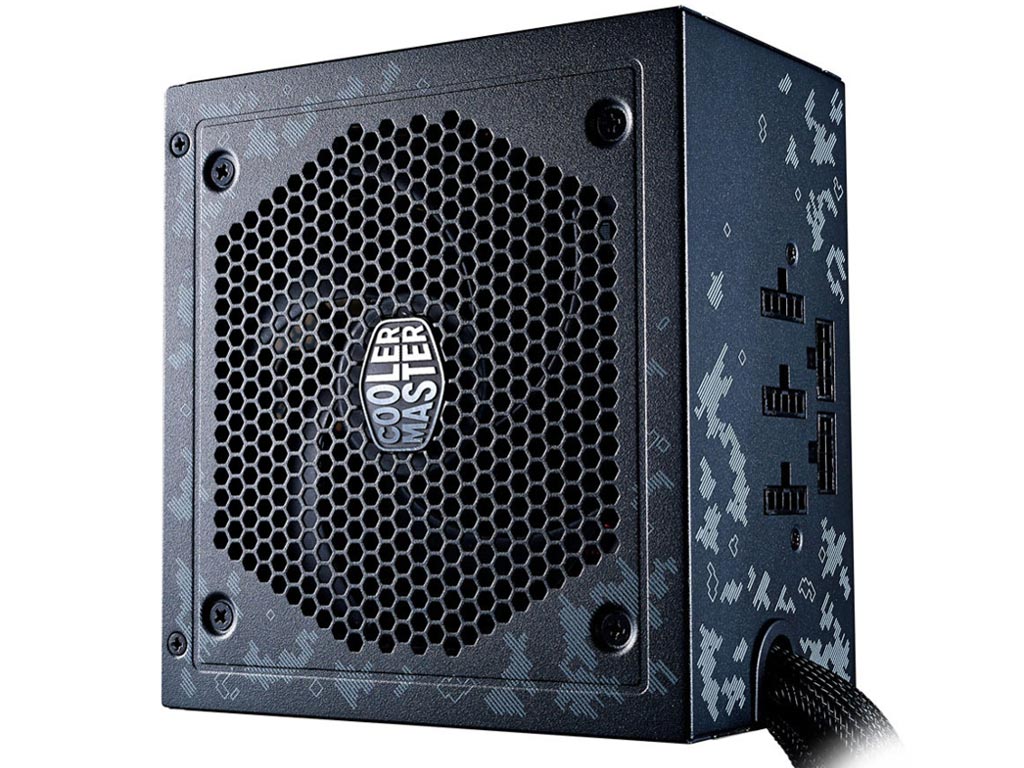

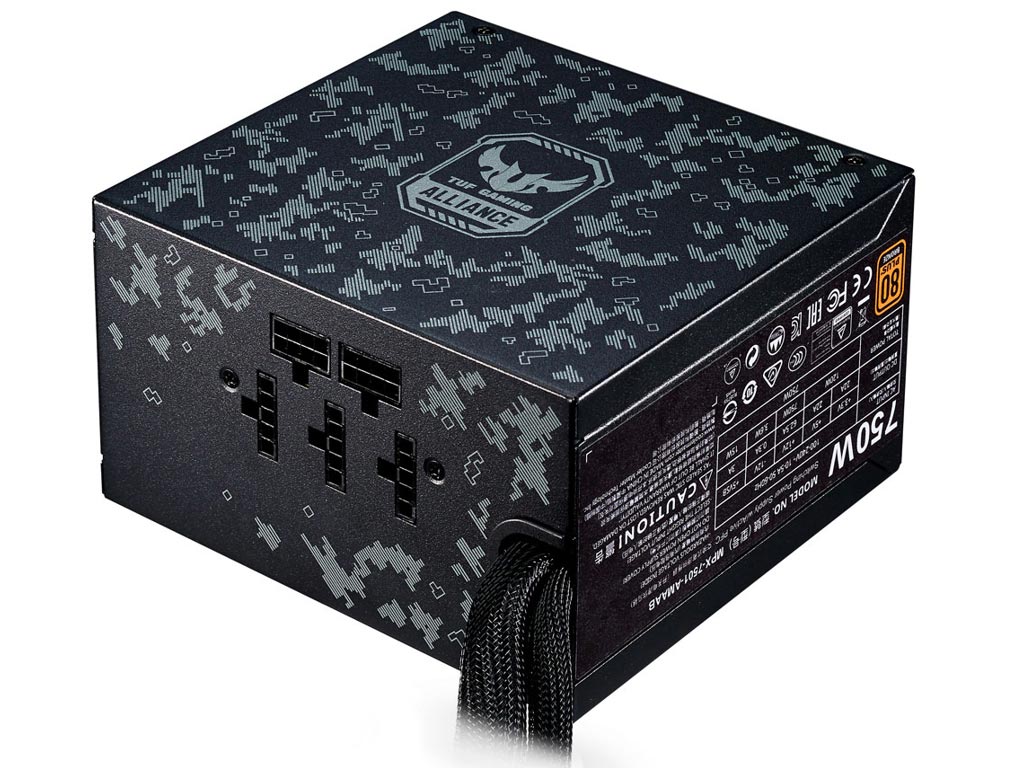

Cooler Master MasterWatt 750 TUF Gaming Semi-Fanless Modular
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
ATX Version | ATX 12V |
PFC | Active PFC |
Input Voltage | 100-240V |
Input Current | 10-5A |
Input Frequency | 50-60Hz |
Dimensions (L x B x H) | 140 x 150 x 86mm |
Fan Size | 120mm |
Fan Bearing | LDB |
Fan Speed | 2100 RPM |
Noise @ 20% | 13 dBA |
Noise @ 50% | 13 dBA |
Noise @ 100% | 29 dBA |
Efficiency | 85% @ Typical Load |
80 PLUS Rating | 80 PLUS Bronze |
ErP 2014 Lot 3 | Yes |
Operating Temperature | 0-40°C |
Power Good Signal | 100-500ms |
Hold Up Time | 16ms at 80% load |
MTBF | >100,000 hours |
Protections | OCP / OVP / UVP / OPP / OTP / SCP |
Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |

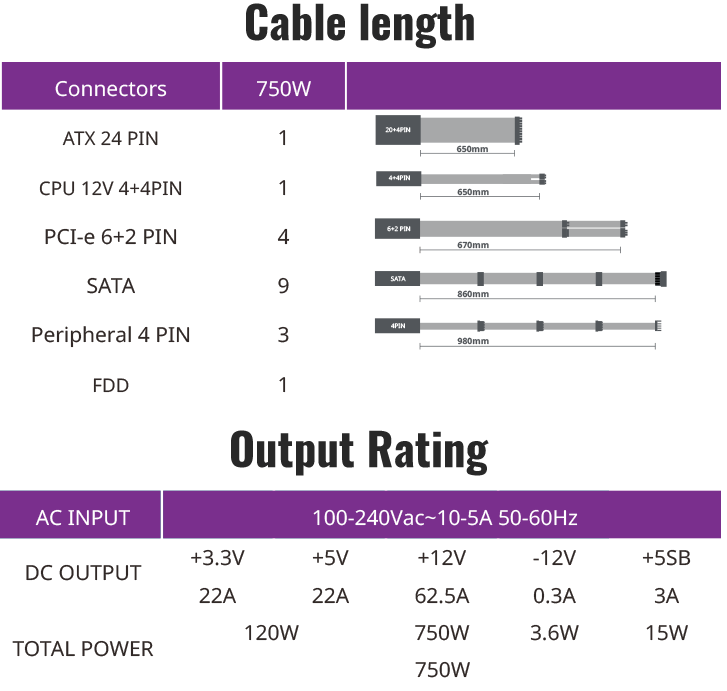

Connectors | ATX 24 Pin x 1 EPS 4+4 Pin x 1 SATA x 9 Peripheral 4 Pin x 3 FDD x 1 PCI-e 6+2 Pin x 4 |
BUILT WITH THE TUF STUF
The 80 Plus Bronze rated MasterWatt TUF Gaming Edition PSU offers semi-fanless operation, modular cabling, thicker than standard market cables, and a 5 year warranty. While under 15% load, MasterWatt TUF Gaming Edition fans aren't spinning, thus reducing the noise, power consumption, and wear on the unit. When the fan is spinning, the Cooler Master designed LDB to fan bearing delivers low noise and a long lifespan. A gradual fan curve increases cooling based on the system's needs, keeping the noise level in check. The higher heat tolerance of the 16 AWG PCI-e cables deliver increased efficiency due to the higher current allowance.
80 PLUS BRONZE CERTIFIED
This certification guarantees a typical efficiency of 85% under normal operating conditions.
SEALED LDB FAN BEARING
The sealed LDB bearing has been combined with Silencio fan technology for quiet cooling with a longer lifespan.
SEMI-FANLESS UP TO 15% LOAD
MasterWatt TUF Gaming Edition Operates at 0dB under 15% load. Experience noise-free basic computing.
PERFORMANCE DRIVEN TOPOLOGY
The Dual Forward and DC-DC circuit design offers reliable, stable output to all your components.
16 AWG PCI-E CABLES
The MasterWatt TUF Gaming Edition uses 16AWG cables for PCI-e cables. Less resistance and better efficiency, providing you a safer user environment.
Κατασκευαστής | Cooler Master |
Μοντέλο | MasterWatt 750 TUF Gaming Semi-Fanless Modular |
Part Number | MPX-7501-AMAAB-EF |
Κατηγορία | Τροφοδοτικά |
Ισχύς | 750 Watt |
Εύρος Ισχύος | 700 - 799 Watt |
Αποσπώμενα Καλώδια | Semi Modular |
Efficiency | 80 Plus Bronze |
Μέγεθος Ανεμιστήρα | 120mm |
Συνδέσεις Τροφοδοσίας | 1x 24-pin ATX 1x 8-pin EPS 1x Floppy 3x 4-pin Molex 9x SATA 4x PCIe |
Εγγύηση | 5 Έτη |
