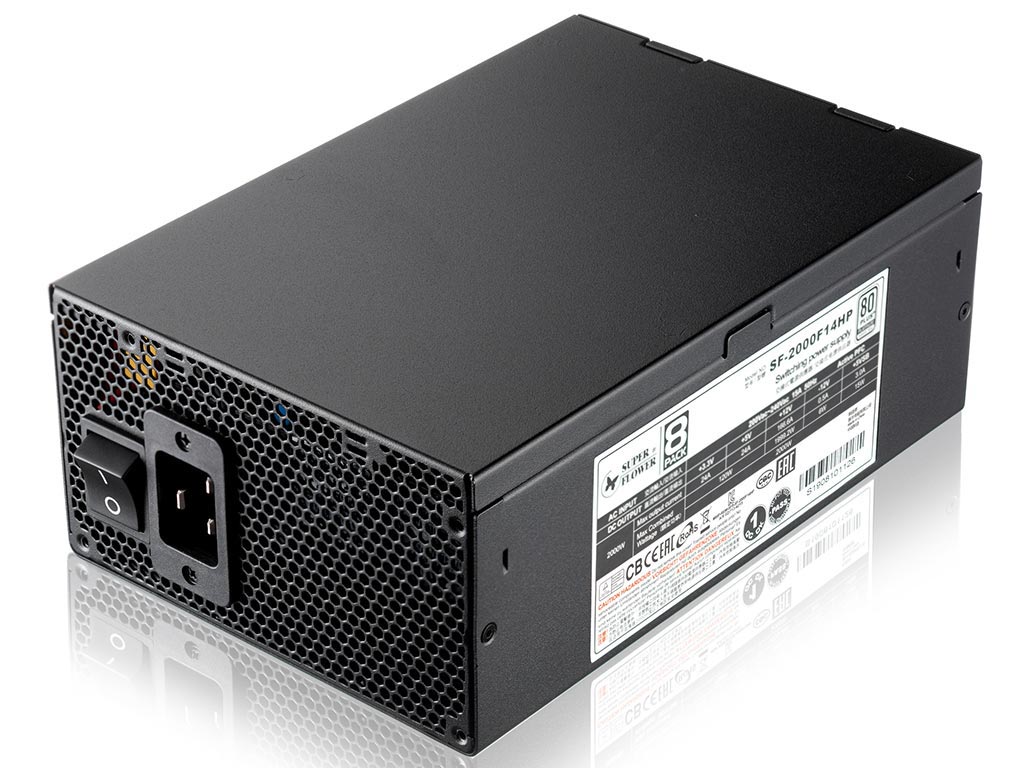

Super Flower Leadex Platinum 2000W 8-Pack Edition Full Modular Power Supply

Super Flower Leadex Platinum 2000W

LAEDEX Platinum series PSU are 80+ Platinum certified with 100% fully modular cable design, our R&D team's latest innovation, a brilliant idea to maximize PSU cables & connectors management to have the best cable routing solution, also increase case chassis air flow to have best cooling for your system.

LEADEX series PSU provides high efficiency & stable power output and come with a 14cm two-way thermal control intelligent cooling fan to ensure your professional PC system will work under heavy load, also capable of powering your PC system equipped with NVIDIA® SLI™ or ATI CrossFireX™ setup.

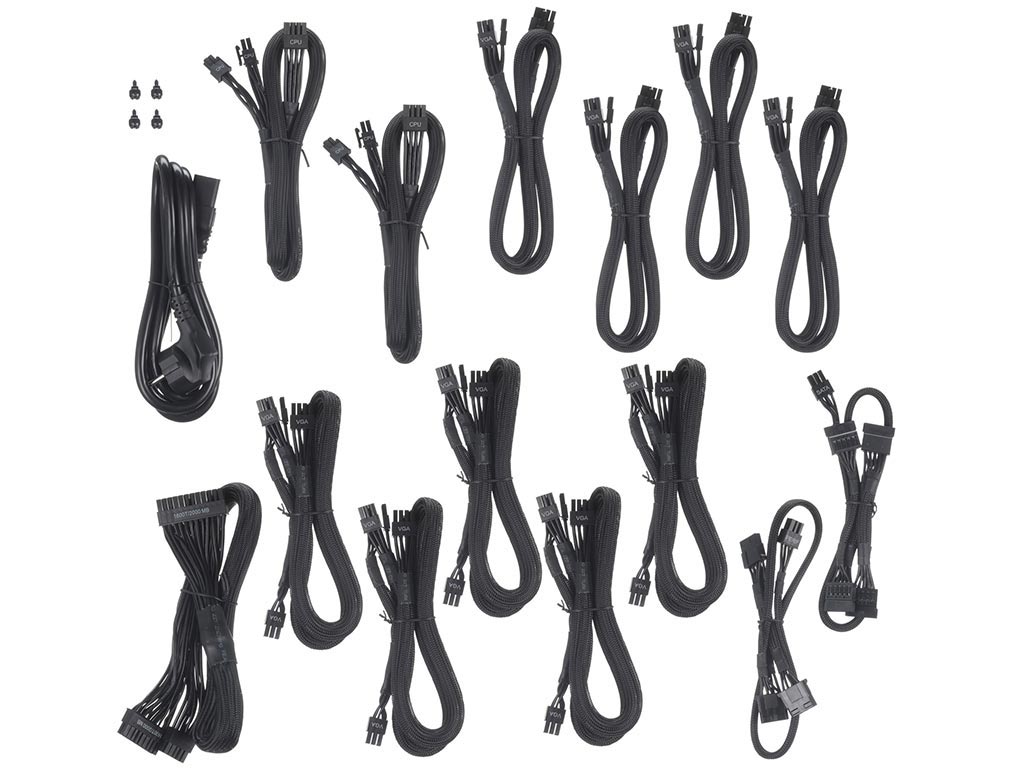

• 100% Full Modular Cabling Design For Easy Cable Management.

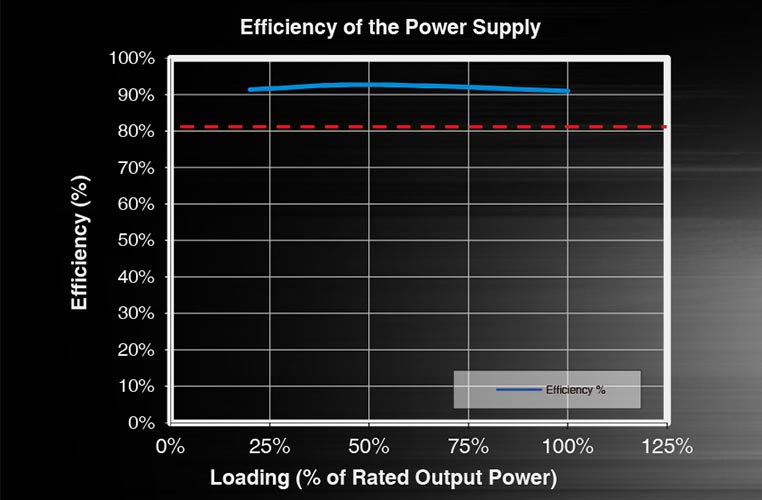

• 80 PLUS ® Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
• Excellent stability & voltage regulation.
• Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
• Comply With ATX 12V v2.32 & SSI EPS 12V v2.92 Specification.
• Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
• 100% high quality Japanese capacitors.
• 140mm double ball bearing cooling fan.
• Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection /Under Voltage Protection / Over Temperature Protection / Low Voltage Protection / No Load Operation / Surge & Inrush Protection.
• Support All Intel/AMD Multi-Core CPU & ATX/BTX Compatible Motherboards.
• Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
• More than 2,000 times On/Off test.
• Unleaded Green Materials with RoHS/WEEE Compliance.
• Perfect For Professional & High Performance Gaming System.
• Bridgeless PFC & Full-Bridge LLC Resonant Circuit Design.

BRIDGE-LESS DESIGN & FULL-BRIDGE LCC & SR & DC-DC CONVERTERS

A full bridge topology is used along with an LLC resonant converter on the primary side; in the secondary side, a synchronous design is utilized in conjuction with two DC-DC converters for the minor rails. This was made possible thanks to the platform's ultra-high efficiency, which effectively limits energy loss and heat dissipation, Super Flower also uses high-quality parts for more tolerant of heat, including Japanese polymer and electrolytic caps.
