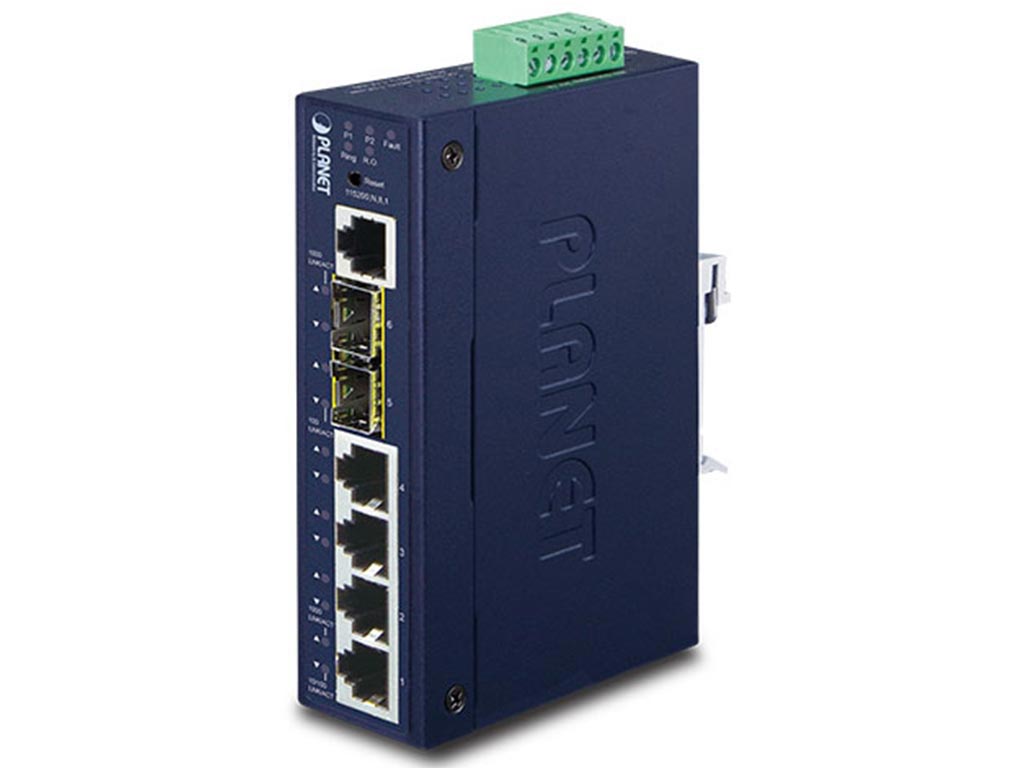

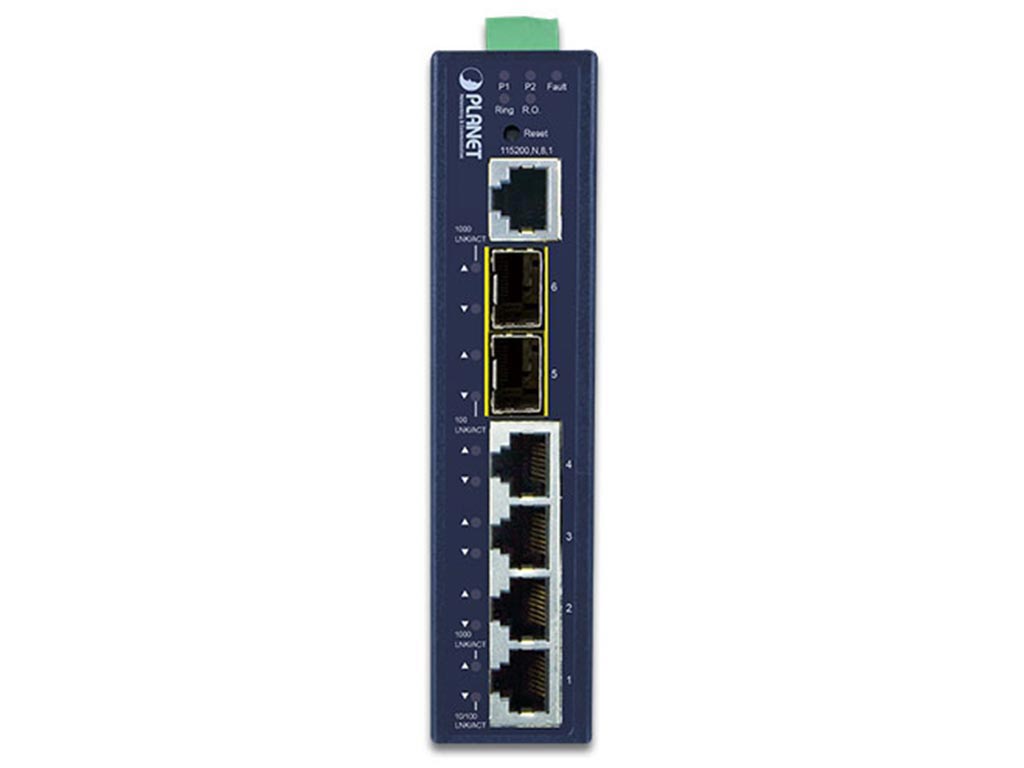

Planet IGS-5225-4T2S Industrial 4-Port 10/100/1000T + 2 100/1000X SFP Managed Switch
![Planet IGS-5225-4T2S Industrial 4-Port 10/100/1000T + 2 100/1000X SFP Managed Switch [IGS-5225-4T2S] Εικόνα 1](https://static.msystems.gr/photos/big_photos/24746.jpg)
![Planet IGS-5225-4T2S Industrial 4-Port 10/100/1000T + 2 100/1000X SFP Managed Switch [IGS-5225-4T2S] Εικόνα 2](https://static.msystems.gr/photos/big_photos/24746.1.jpg)
![Planet IGS-5225-4T2S Industrial 4-Port 10/100/1000T + 2 100/1000X SFP Managed Switch [IGS-5225-4T2S] Εικόνα 3](https://static.msystems.gr/photos/big_photos/24746.2.jpg)
Χωρίς ΦΠΑ: - €
Πληροφορίες
Δόσεις
Άτοκες Δόσεις
Δόσεις χωρίς πιστωτική
Buy Now - Pay Later

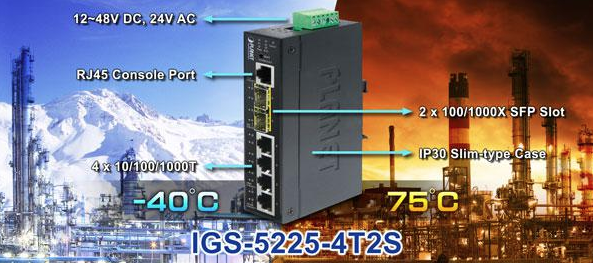

For Harsh and Space-limited Environments
PLANET IGS-5225-4T2S, the smallest, fully-managed Gigabit fiber switch for harsh environments, features 4 10/100/1000Mbps copper ports, 2 100/1000X SFPports and redundant power system in an IP30 rugged but compact-sized case. The IGS-5225-4T2S can be installed in any difficult environment as it can operate stably under the temperature range from -40 to 75 degrees C. With such a slim enclosure, it does not need a big space to install. The switch features user-friendly yet advanced IPv6/IPv4 management interfaces, abundant L2/L4 switching functions and Layer 3 static routing capability. It allows either DIN-rail or wall mounting for efficient use of cabinet space. With 2 dual-speed SFP fiber slots, it can be flexibly applied to extend the connection distance.
.png)
Cybersecurity Network Solution to Minimize Security Risks
The new generation of IGS-5225-4T2S has the cybersecurity feature to protect the switch management and enhance the security for mission-critical network without extra deployment cost and effort. The new IGS-5225-4T2S expands its memory and upgrades the kernel of SSH, TLS and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC-based network access control, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
.png)

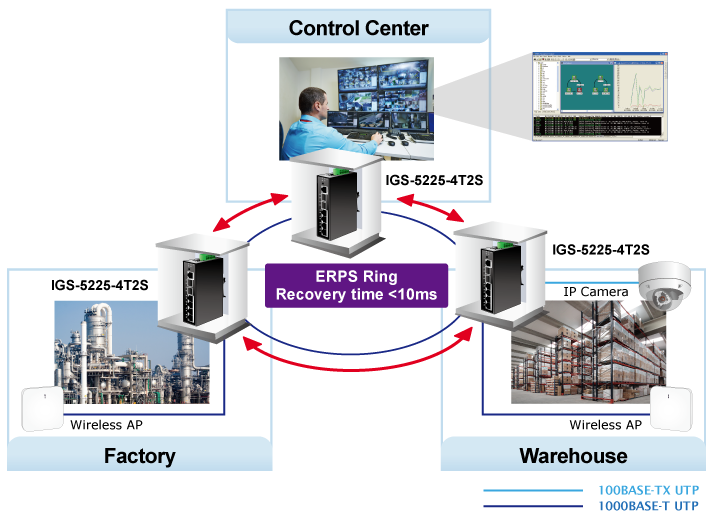

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-5225-4T2S supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.
SMTP/SNMP Trap Event Alert and Fault Alarm
The IGS-5225-4T2S provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response. It supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.
.png)

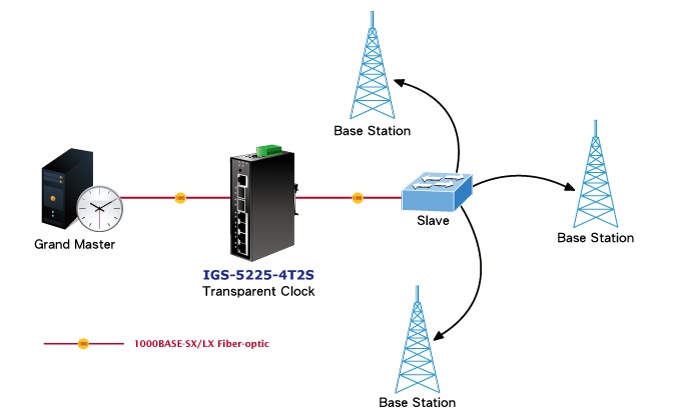

1588 Time Protocol for Industrial Computing Networks
The IGS-5225 series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.
.png)
Modbus TCP provides Flexible Network Connectivity for Factory Automation
With the supported Modbus TCP/IP Protocol, the IGS-5225 series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory.
|
Hardware Specifications |
|
|---|---|
|
Copper Ports |
4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
|
SFP/mini-GBIC Slots |
2x 1000BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6) |
|
Console |
1x RJ45-to-RS232 serial port (115200, 8, N, 1) |
|
Switch Architecture |
Store-and-Forward |
|
Switch Fabric |
12Gbps/non-blocking |
|
Throughput (packet per second) |
8.9Mpps@ 64 bytes packet |
|
Address Table |
8K entries, automatic source address learning and aging |
|
Shared Data Buffer |
4Mbits |
|
Flow Control |
IEEE 802.3x pause frame for full duplex |
|
Jumbo Frame |
9Kbytes |
|
Reset Button |
< 5 sec: System reboot |
|
ESD Protection |
Air 8KV, Contact 6KV |
|
Enclosure |
IP30 metal case |
|
Installation |
DIN-rail kit and wall-mount kit |
|
Connector |
Removable 6-pin terminal block for power input |
|
Alarm |
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
|
LED Indicator |
System: |
|
Dimensions (W x D x H) |
32 x 87x 135 mm |
|
Weight |
456g |
|
Power Requirements |
Dual 12~48V DC |
|
Power Consumption |
Max. 6.3 watts/21.6 BTU (Power on without any connection) |
|
Layer 2 Function |
|
|
Basic Management Interfaces |
Console; Telnet; Web browser; SNMP v1, v2c |
|
Secure Management Interfaces |
SSH, SSL, SNMP v3 |
|
Port Configuration |
Port disable/enable |
|
Port Status |
Display each port’s speed duplex mode, link status, flow control status, |
|
Port Mirroring |
TX/RX/both |
|
VLAN |
802.1Q tagged VLAN, up to 255 VLAN groups |
|
Link Aggregation |
IEEE 802.3ad LACP/static trunk |
|
QoS |
Traffic classification based, strict priority and WRR |
|
IGMP Snooping |
IGMP (v1/v2/v3) snooping, up to 255 multicast groups |
|
MLD Snooping |
MLD (v1/v2) snooping, up to 255 multicast groups |
|
Access Control List |
IP-based ACL/MAC-based ACL |
|
Bandwidth Control |
Per port bandwidth control |
|
SNMP MIBs |
RFC 1213 MIB-II |
|
Layer 3 Function |
|
|
IP Interfaces |
Max. 8 VLAN interfaces |
|
Routing Table |
Max. 32 routing entries |
|
Routing Protocols |
IPv4 software static routing |
|
Standards Conformance |
|
|
Regulatory Compliance |
FCC Part 15 Class A, CE |
|
Stability Testing |
IEC60068-2-32 (free fall) |
|
Standards Compliance |
IEEE 802.3 10BASE-T |
| Κατασκευαστής | Planet |
| Μοντέλο | IGS-5225-4T2S Industrial 4-Port 10/100/1000T + 2 100/1000X SFP Managed Switch |
| Part Number | IGS-5225-4T2S |
| Κατηγορία | Switches |
| Θύρες | 6 Ports 2 SFP Ports (BASE-SX/ LX/ BX, Compatible with 100BASE-FX SFP) 4 Ports Base-T (RJ45 auto-MDI/MDI-X ports) |
| Port Speed | 1 Gbps |
| Manageable | Managed |
| Rackmount | Rackmount |
| Υποστήριξη PoE | Χωρίς PoE |
| Industrial | Yes |

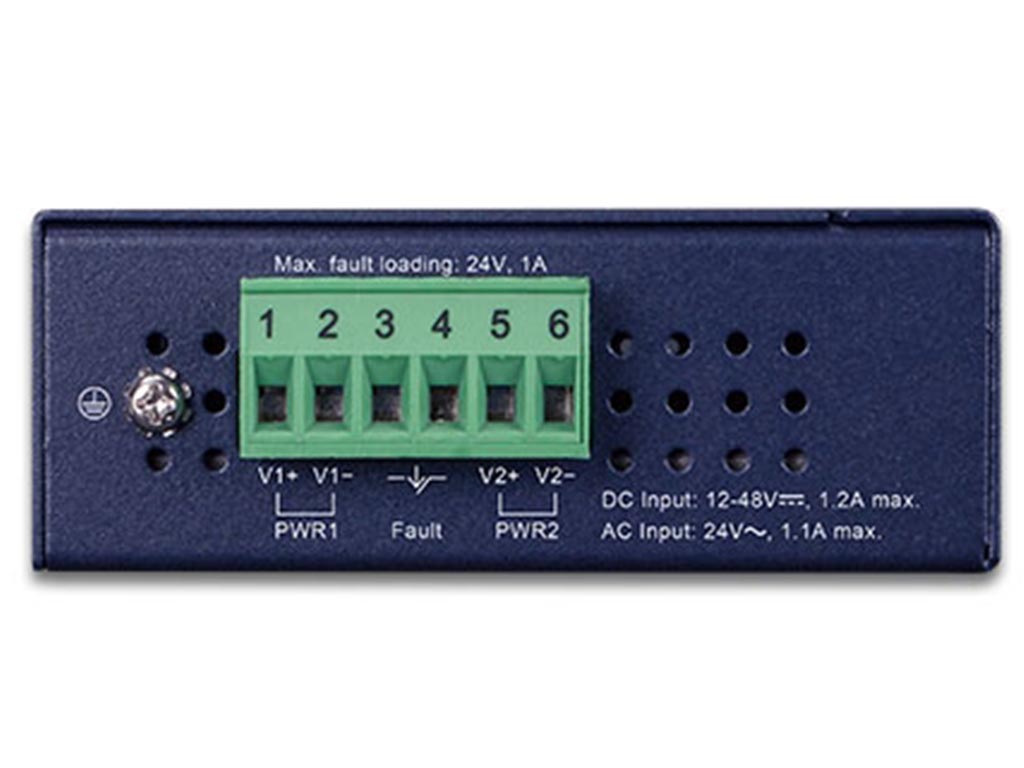

| Τροφοδοσία | 6-Pin Terminal Block Removable 6-pin terminal block(Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2) |
| Εγγύηση | 3 Έτη για την συσκευή, 2 Έτη για το τροφοδοτικό, DOA 7 ημερών, Τεχνική Υποστήριξη Τηλ. 210-80-12207, Support Mail: info@profser.gr. |
