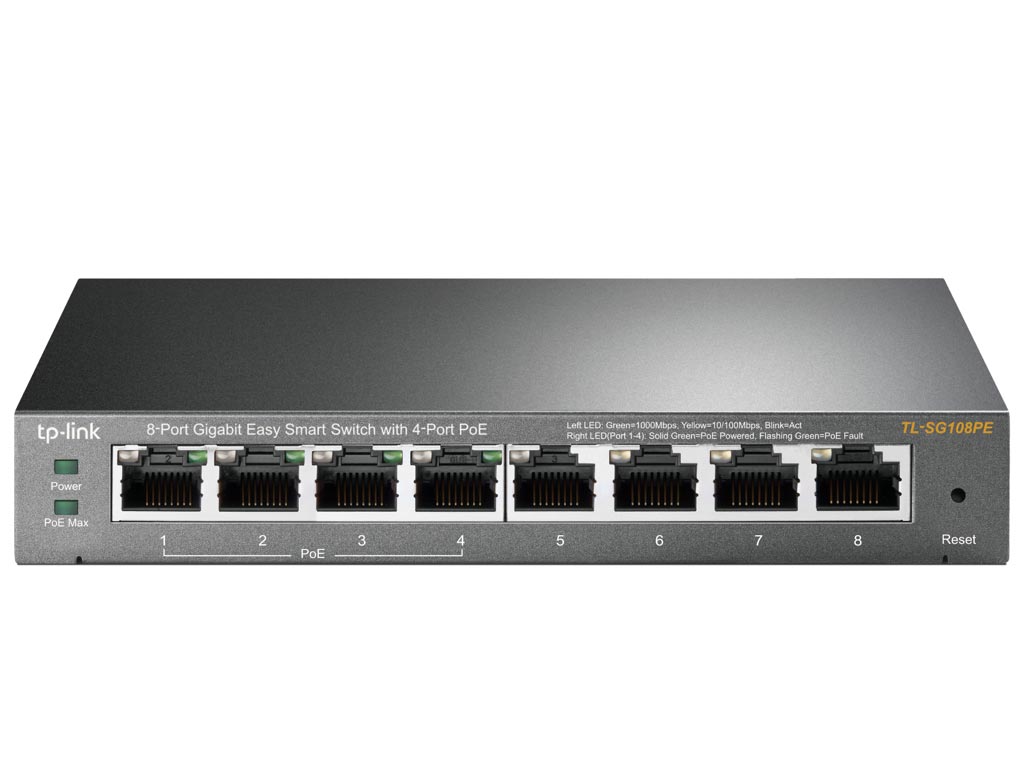

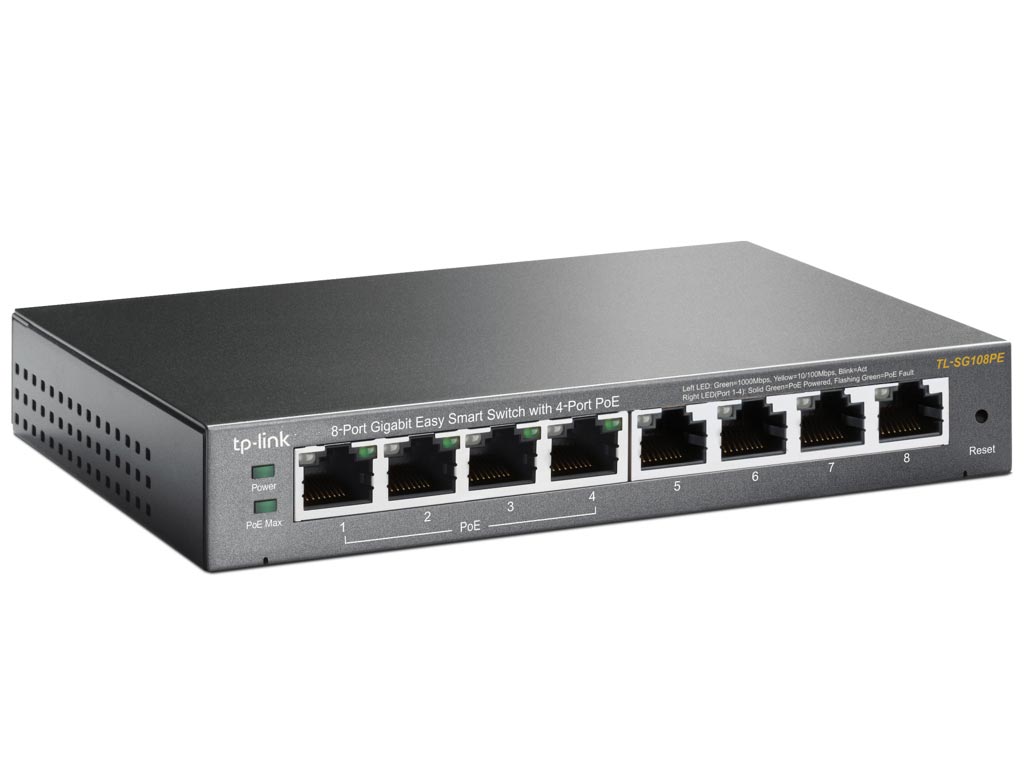

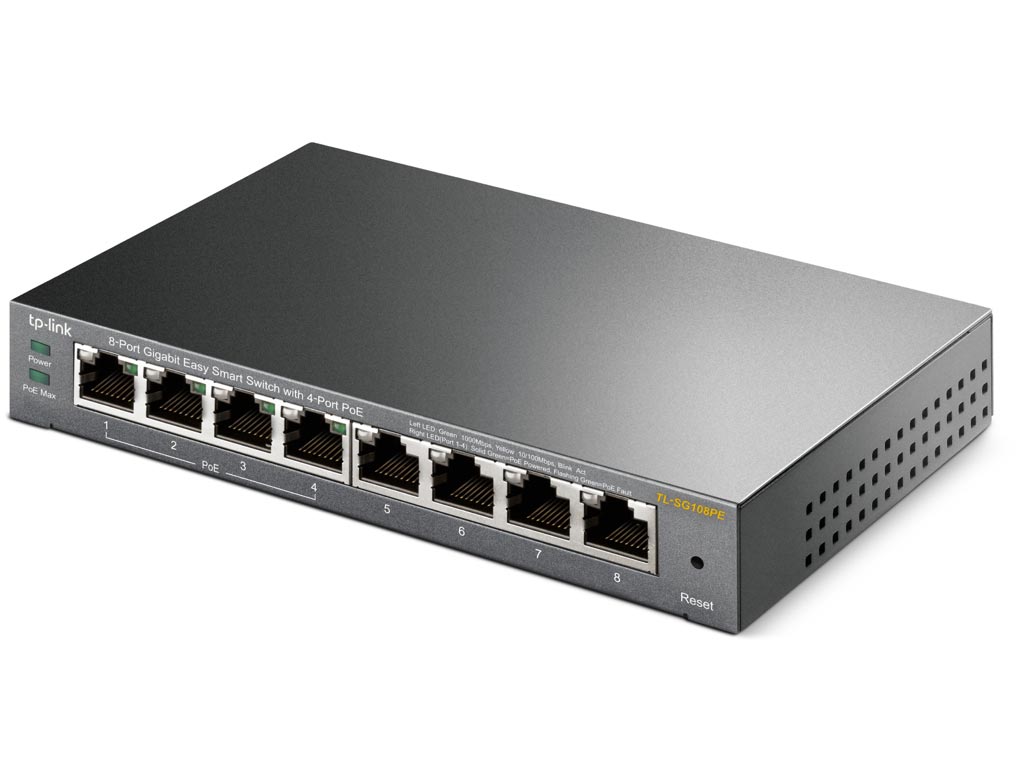

Tp-Link 8-port 10/100/1000 Easy Gigabit Smart Switch with 4-Port PoE V2.0
![Tp-Link 8-port 10/100/1000 Easy Gigabit Smart Switch with 4-Port PoE V2.0 [TL-SG108PE] Εικόνα 1](https://static.msystems.gr/photos/big_photos/27004.jpg)
![Tp-Link 8-port 10/100/1000 Easy Gigabit Smart Switch with 4-Port PoE V2.0 [TL-SG108PE] Εικόνα 2](https://static.msystems.gr/photos/big_photos/27004.1.jpg)
![Tp-Link 8-port 10/100/1000 Easy Gigabit Smart Switch with 4-Port PoE V2.0 [TL-SG108PE] Εικόνα 3](https://static.msystems.gr/photos/big_photos/27004.2.jpg)
Χωρίς ΦΠΑ: 52,34 €
Πληροφορίες
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com
Δόσεις
Buy Now - Pay Later
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 48VDC / 1.25A) |
| Power Consumption | Maximum (PoE on): 65.2W (220V/50Hz) Maximum (PoE off): 5.2W (220V/50Hz) |
| PoE+ Ports(RJ45) | |
| PoE Ports (RJ45) | Standard: 802.3 af compliant PoE Ports: Port 1- Port 4 PoE Power Budget: 55W |
| Max Power Consumption | 5.15W (220V/50Hz with no PD connected) 65.18W (220V/50Hz with 55W PD connected) |
| Max Heat Dissipation | 17.57 BTU/h (with no PD connected) 222.39 BTU/h (with 55W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mpps |
| MAC Address Table | 4K |
| Packet Buffer Memory | 1.5Mb |
| Jumbo Frame | 15KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Support Port-Based/802.1p/DSCP priority Support 4 priority queues Rate Limit Storm Control |
| L2 Features | IGMP Snooping V1/V2/V3 Link Aggregation Port Mirroring Cable Diagnostics Loop Prevention |
| VLAN | Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN |
| Management | Web-based GUI Easy Smart Configuration Utility |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG108PE Power Adapter Installation Guide Resource CD Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~95%RH non-condensing |
The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specifically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Power Over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Effective Management
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.
| Κατασκευαστής | Tp-Link |
| Μοντέλο | 8-port 10/100/1000 Easy Gigabit Smart Switch with 4-Port PoE V2.0 |
| Part Number | TL-SG108PE |
| Κατηγορία | Switches |
| Θύρες | 8 Ports |
| Port Speed | 1 Gbps |
| Manageable | Managed |
| Rackmount | No Rackmount |
| Υποστήριξη PoE | Με PoE |
| Industrial | No |
| Τροφοδοσία | Με PoE DC Adapter |
| Εγγύηση | Limited Lifetime Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com |
