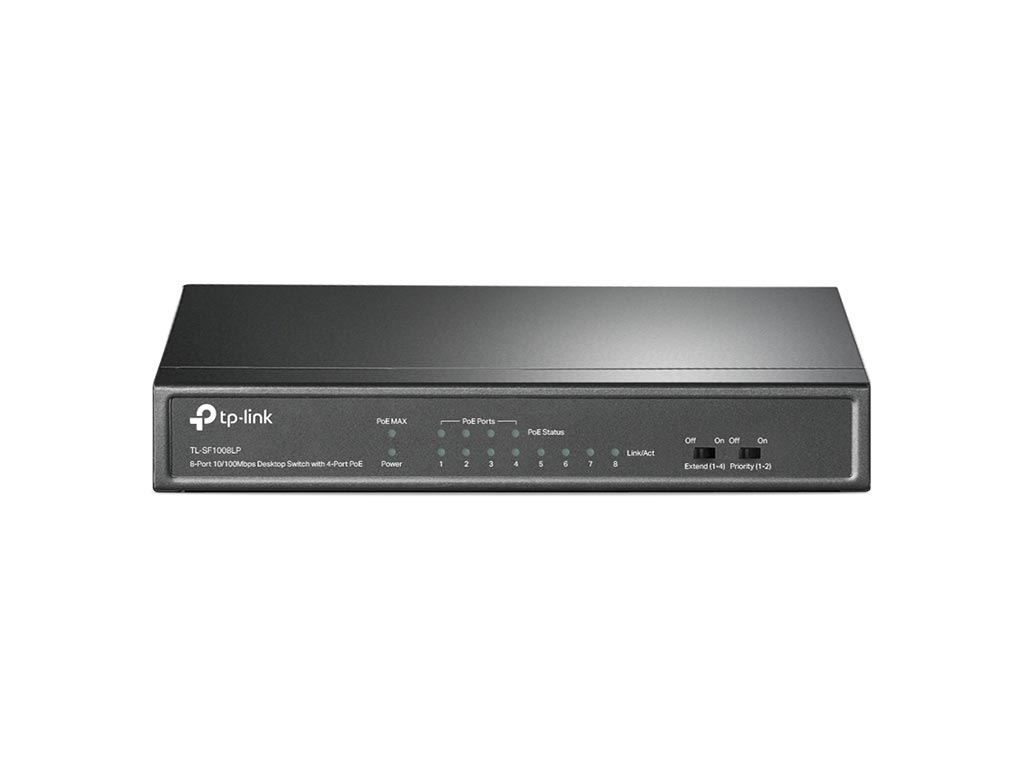

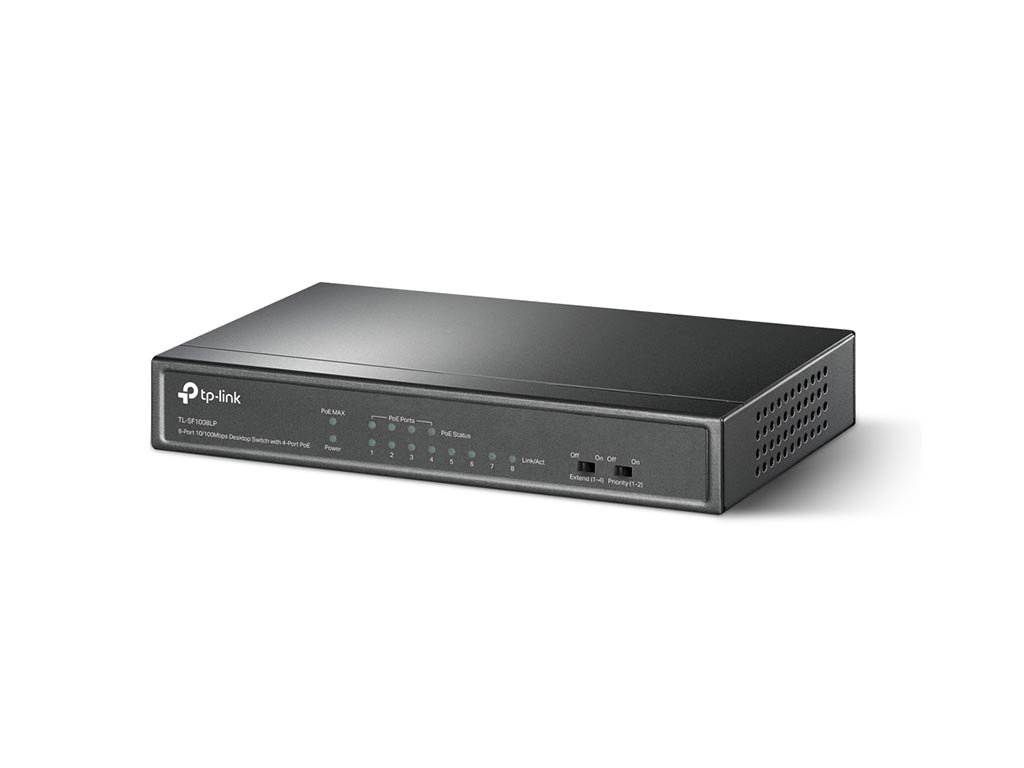

Tp-Link 8-Port 10/100Mbps Desktop Switch with 4-Port PoE V1.0
Χωρίς ΦΠΑ: 36,21 €
Πληροφορίες
Δόσεις
- 8× 10/100 Mbps RJ45 ports
- 4× PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250m data and power transmitting range under Extend Mode
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports
- Plug and play with no configuration required
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m

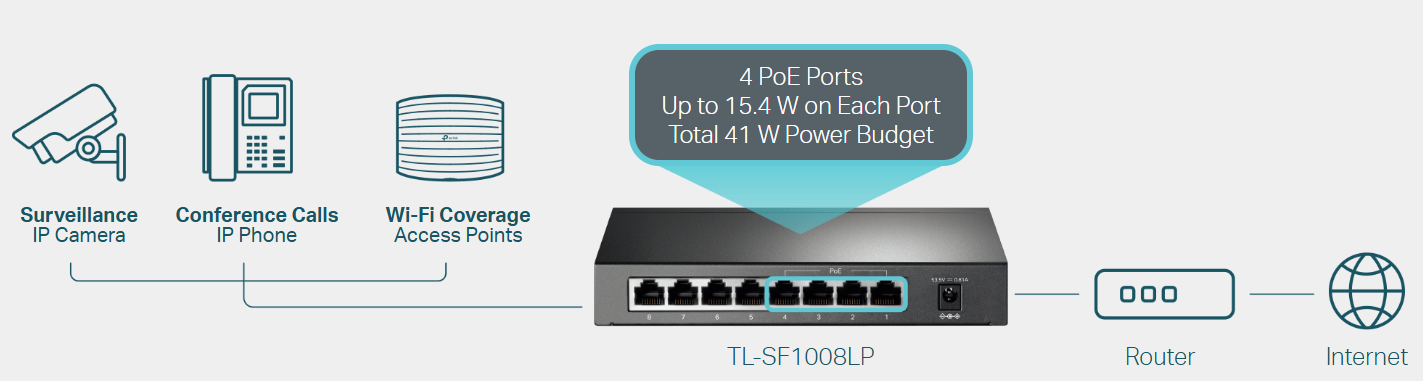

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

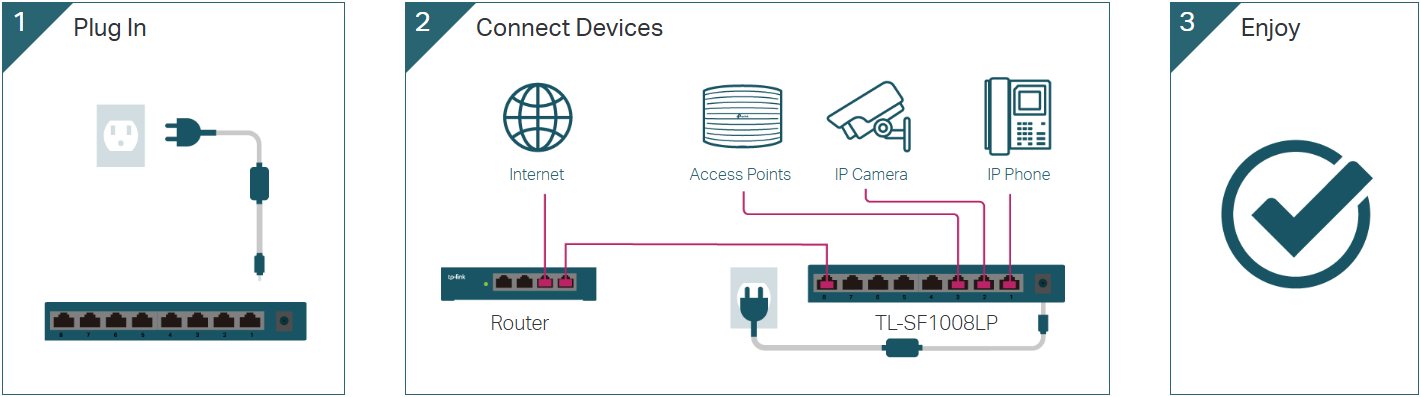

Plug and Play, No Configuration Required

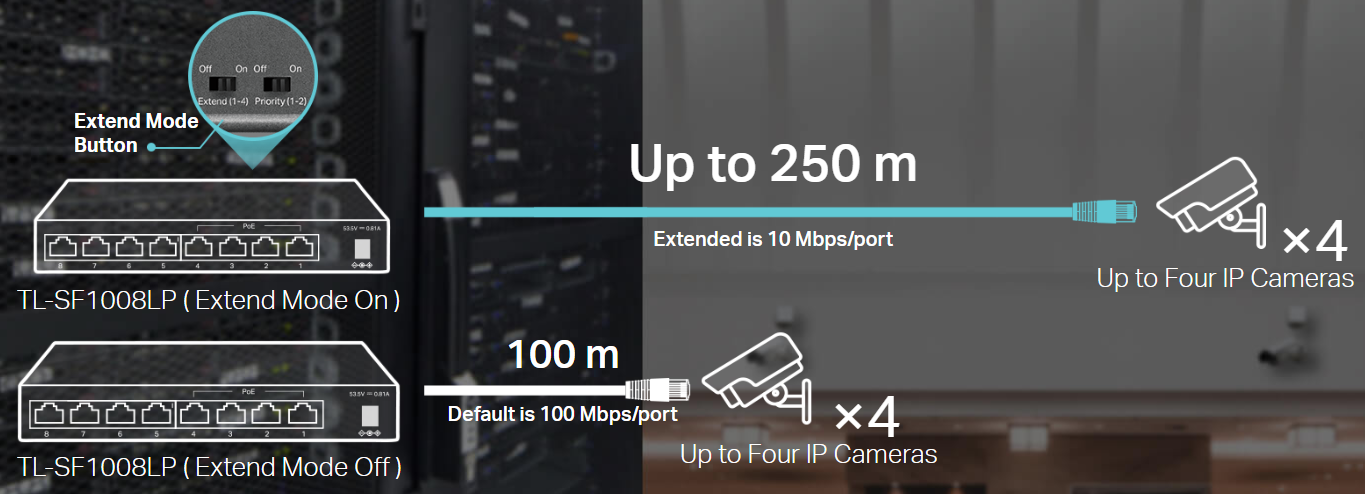

Ideal for IP Surveillance - Up to 250 m Transmissions

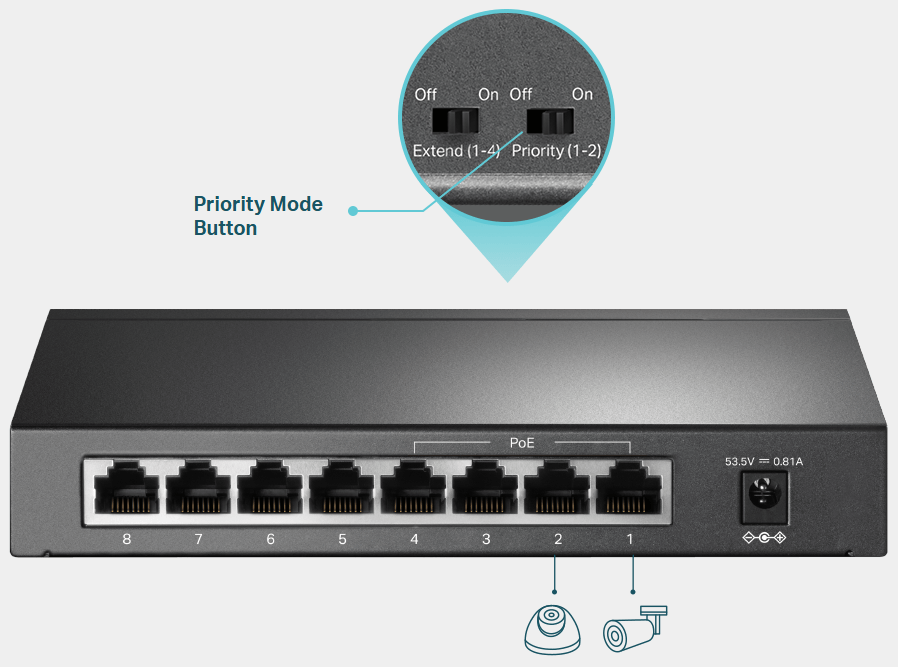

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

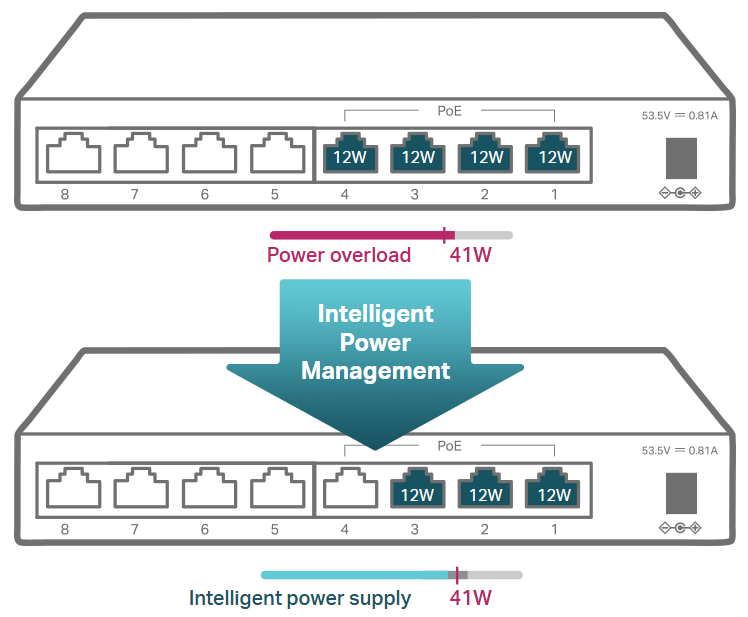

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

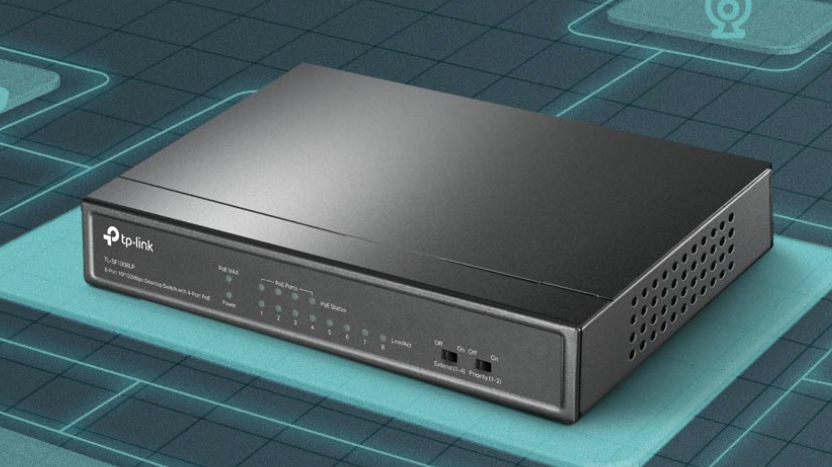

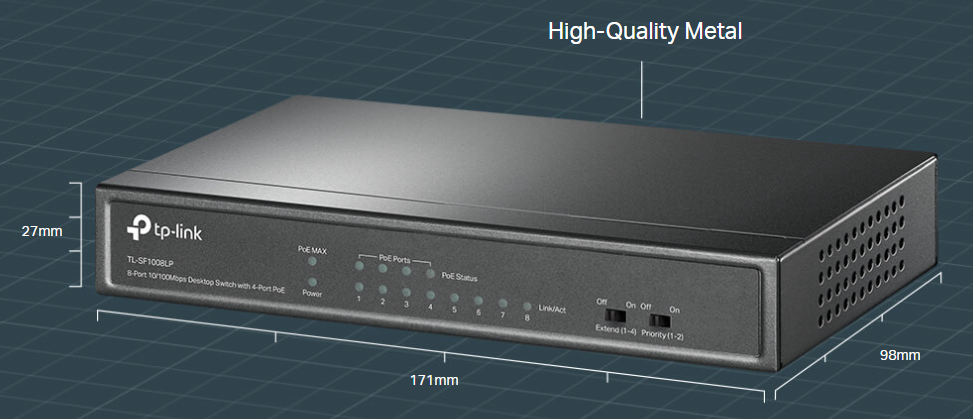

Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
HARDWARE FEATURES | |
Interface | • 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
Packet Forwarding Rate | 1.1904 Mpps |
PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W |
Mac Address Table | 2K |
Jumbo Frame | 2 KB |
Switching Capacity | 1.6 Gbps |
Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
Max Power Consumption | • 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
Max Heat Dissipation | • 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) |
SOFTWARE FEATURES | |
Transmission Method | Store-And-Forward |
Advanced Functions | • Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
OTHERS | |
Certification | CE, FCC ,RoHS |
Package Contents | • TL-SF1008LP • Power Adapter • Installation Guide |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
Κατασκευαστής | Tp-Link |
Μοντέλο | 8-Port 10/100Mbps Desktop Switch with 4-Port PoE V1.0 |
Part Number | TL-SF1008LP |
Κατηγορία | Switches |
Θύρες | 8 Ports |
Port Speed | 10/100 Mbps |
Manageable | Unmanaged |
Rackmount | No Rackmount |
Υποστήριξη PoE | Με PoE |
Industrial | No |
Τροφοδοσία | DC Adapter |
Εγγύηση | 3 Έτη |
