Tp-Link Jetstream 16-Port 10/100/1000 PoE+ Smart Switch V1.0

Κατόπιν Παραγγελίας
199,90 €
Χωρίς ΦΠΑ: 161,21 €
Πληροφορίες
Κωδικός Msystems: 001-59967
Part Number: TL-SG2016P
Εγγύηση: Limited Lifetime
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email :support.gr@tp-link.com

Παρακαλώ συμπληρώστε τον ΤΚ σας
Παρακαλώ επιλέξτε νομό
Παρακαλώ επιλέξτε πόλη

Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners
Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις. για άτοκες δόσεις πρέπει το συνολικό ποσό της παραγγελίας σας να ξεπερνά τα 200€
103,34 € / δόση = 206,68
69,21 € / δόση = 207,62
52,13 € / δόση = 208,54
41,89 € / δόση = 209,46
35,07 € / δόση = 210,39
30,19 € / δόση = 211,33
26,53 € / δόση = 212,27
23,69 € / δόση = 213,21
21,42 € / δόση = 214,15
19,56 € / δόση = 215,11
18,01 € / δόση = 216,07
16,69 € / δόση = 217,03
15,57 € / δόση = 217,99
14,60 € / δόση = 218,95
13,75 € / δόση = 219,93
12,99 € / δόση = 220,91
12,33 € / δόση = 221,89
11,73 € / δόση = 222,87
11,19 € / δόση = 223,87
10,71 € / δόση = 224,85
10,27 € / δόση = 225,85
9,86 € / δόση = 226,85
9,49 € / δόση = 227,85
9,15 € / δόση = 228,87
8,84 € / δόση = 229,87
8,55 € / δόση = 230,88
8,28 € / δόση = 231,90
8,03 € / δόση = 232,94
7,80 € / δόση = 233,96
7,58 € / δόση = 235,00
7,38 € / δόση = 236,04
7,18 € / δόση = 237,08
7,00 € / δόση = 238,12
6,83 € / δόση = 239,18
6,67 € / δόση = 240,24

Buy Now - Pay Later μέσω tbi bank
Πραγματοποιήστε τις αγορές σας, για ποσά από 20€ έως 400€, σε 4 μηνιαίες δόσεις με την χρήση μόνο της χρεωστικής σας κάρτας
Facebook Twitter Email
Facebook Twitter Email
Περιγραφή

TL-SG2016P

JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

  • 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W.
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

Multiple Application Scenarios

The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

  • Surveillance
    Works with IP Cameras

  • Conference Call
    Works with IP Phones

  • Wi-Fi Coverage
    Works with Omada EAPs

  • Wired Connections
    Works with PCs and Printers

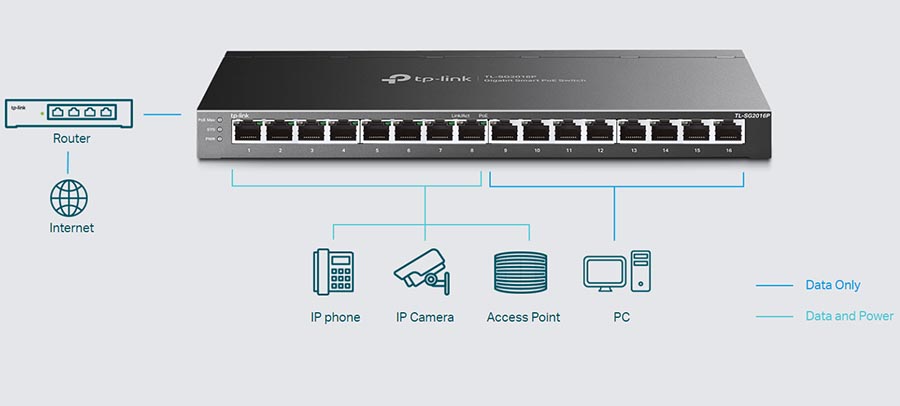

Power over Ethernet for Simplified Network Deployment

Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.

Value-Added Features Bring Unexpected Experience

Access Control List (ACL)

ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.

QoS for Lag-Free Experience

Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.

VLAN for Security

Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

SOFTWARE FEATURES
Quality of Service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
- SP (Strict Priority)
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port/Flow-based Rating Limit
• Smoother Performance
• Storm Control
- Multiple Control Modes(kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features • DHCP Relay
- DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Flow-Based
- Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
L2 Multicast • 511 IPv4, IPv6 shared multicast groups
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- Static Group Config
• Multicast VLAN Registration (MVR)
• Multicast Filtering
• MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
• Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support • IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
VLAN • VLAN Group
- Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN
Access Control List • Support up to 230 entries
• Time-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
- Holiday
• Time-based ACL
• MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP Protocol
- TCP Flag
- TCP/UDP Source Port
- TCP/UDP Destination Port
- DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
- Permit/Deny
• Policy Action
- Mirror
- Rate Limit
- Redirect
- QoS Remark
• ACL Rules Binding
- Port Binding
- VLAN Binding
• Actions for flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
Security • AAA
• 802.1X
- Port-based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Support Radius authentication and
accountability
• IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
• IP Source Guard
- 253 Entries
- Source IP+Source MAC
• IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with
SSLv3/TLS 1.2
• Secure Command Line Interface (CLI)
management with SSHv1/SSHv2
• IP/Port/MAC-based access control
Advanced Features • Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes, through
• Omada Cloud-Based Controller
• OC300
• OC200
• Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features • Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
Τεχνικά Χαρακτηριστικά
ΚατασκευαστήςTp-Link
ΜοντέλοJetstream 16-Port 10/100/1000 PoE+ Smart Switch V1.0
Part NumberTL-SG2016P
ΚατηγορίαSwitches
Θύρες16 Ports
Port Speed1 Gbps
ManageableManaged
RackmountNo Rackmount
Υποστήριξη PoEΜε PoE - 8x Ports (1 ~ 8) 120W Total, 802.3af/at compliant
IndustrialNo
ΤροφοδοσίαDC Adapter - External (53.5 VDC/ 2.43 A)
Λοιπά στοιχείαStandards and Protocols
IEEE 802.3i,
IEEE 802.3ab,
IEEE 802.3ad,
IEEE 802.3af,
IEEE 802.3at,
IEEE 802.3x,
IEEE 802.1d,
IEEE 802.1s,
IEEE 802.1w,
IEEE 802.1q,
IEEE 802.1p,
IEEE 802.1x

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Hardware
Dimensions ( W x D x H ): 286 x 111.7 x 25.4 mm
Bandwidth/ Backplane: 16 Gbps
MAC Address Table: 8k
Packet Buffer Memory: 4.1 Mbit
Jumbo Frame: 9 KB
Max Power Consumption: 146.5 W (110V/60Hz) (with 120 W PD connected)
Standby Power Consumption: 9.0 W (110V/60Hz)
Max Heat Dissipation: 499.98 BTU/hr (110V/60Hz) (with 120 W PD connected)

Box Contents
TL-SG2016P
Power Adapter
Installation Guide
Rubber Feet
ΕγγύησηLimited Lifetime
