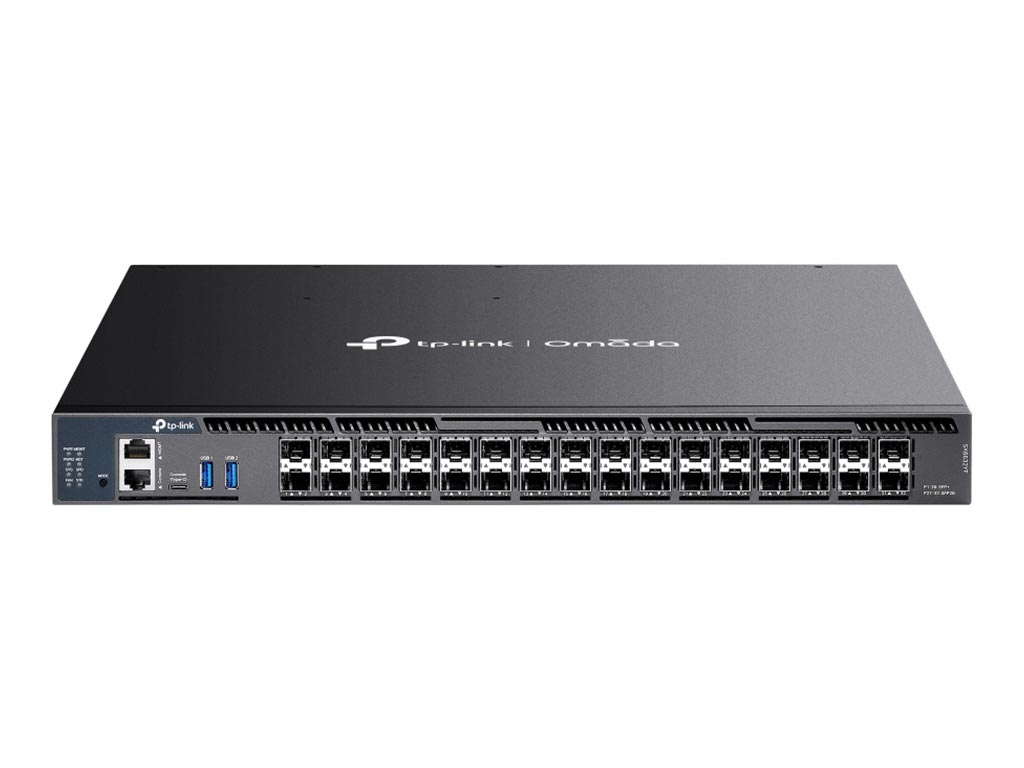

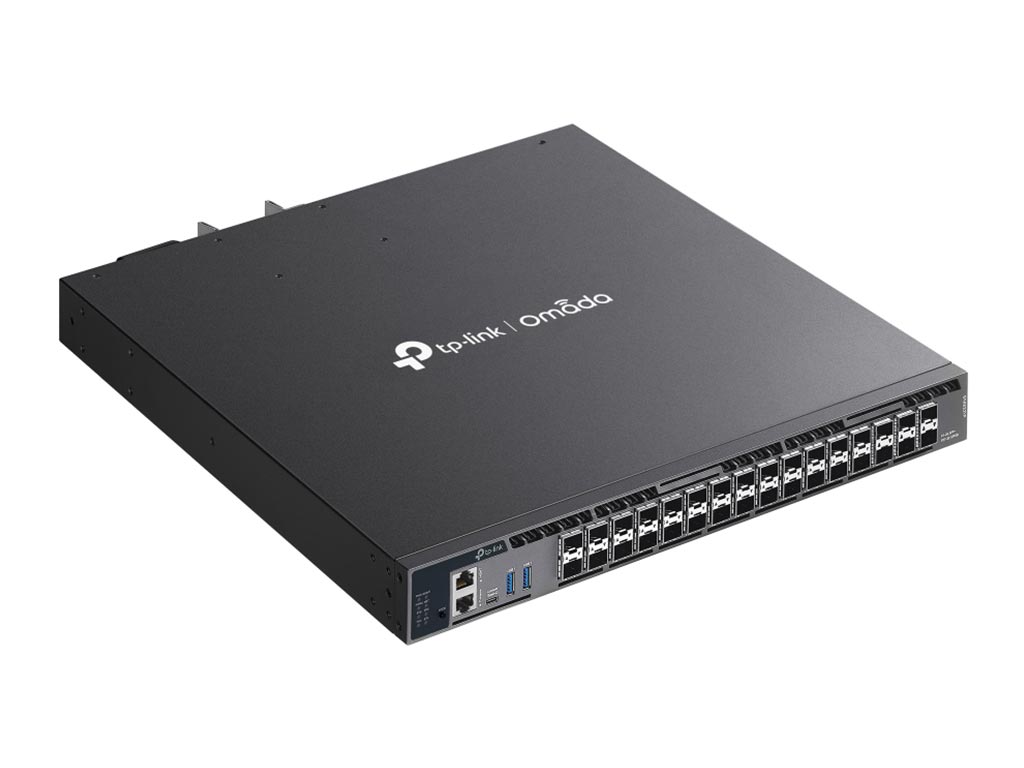

Tp-Link Omada 26-Port 10 GE SFP+ Stackable L3 Managed Aggregation Switch with 6-Port 25 GE SFP28 V1.0

• 26× 10G SFP+ slots and 6× 25G SFP28 slots
• 820 Gbps switching capacity
• Physical Stacking up to 8 units for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM, and DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two field-replaceable power supplies, VRRP, and ERPS
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

What This Product Does

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking

6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

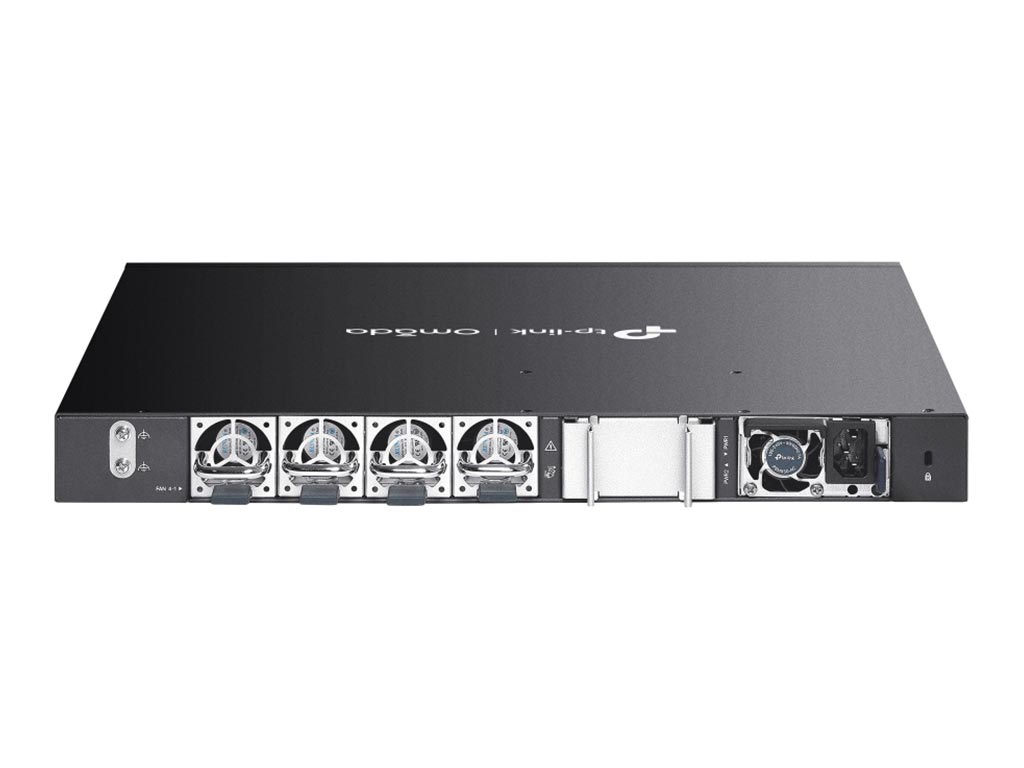

Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP). The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
