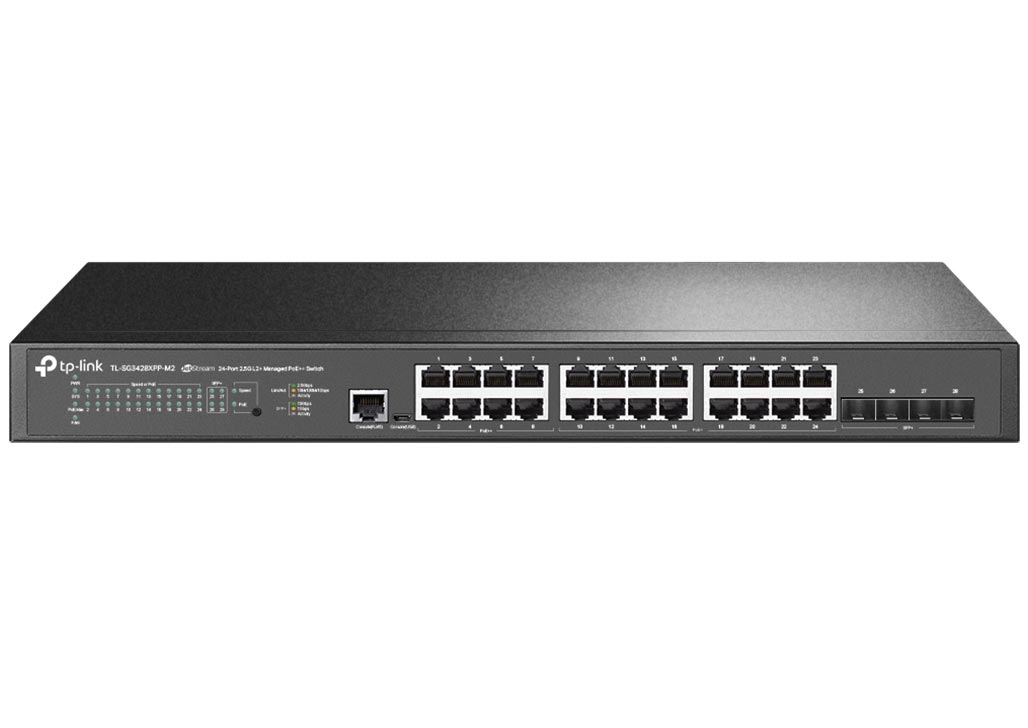

Name: Tp-Link Omada SG3428XPP-M2 24-Port 2.5G 4-Port 10G SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ V1.0
Brand: Tp-Link
SKU: 001-71005
Price: 898.99 EUR
Availability: BackOrder

898,99 €
Χωρίς ΦΠΑ: 724,99 €

Κατόπιν Παραγγελίας

Πληροφορίες

Κωδικός Msystems: 001-71005

Part Number: SG3428XPP-M2

EAN: 4897098689738

Εγγύηση: Limited Lifetime
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com

Υπολογισμός μεταφορικών

Δόσεις

Με πιστωτική κάρτα Visa, Mastercard, American Express, Diners

Παρακάτω βλέπετε τις επιλογές για τις έντοκες δόσεις.

464,73 € / δόση = 934,86 €

Άτοκες Δόσεις

Με πιστωτική κάρτα Visa, Mastercard

Δεν υπάρχει η δυνατότητα για άτοκες δόσεις με κάρτες American Express και Diners

449,50 € / δόση = 898,99 €

Δόσεις χωρίς πιστωτική

Δόσεις χωρίς πιστωτική

Δόσεις χωρίς πιστωτική με tbi bank
Επίλεξε από 3 έως 60 μηνιαίες πληρωμές για αγορές από 300€ έως και 10.000€

Μοιράσου το:

Περιγραφή

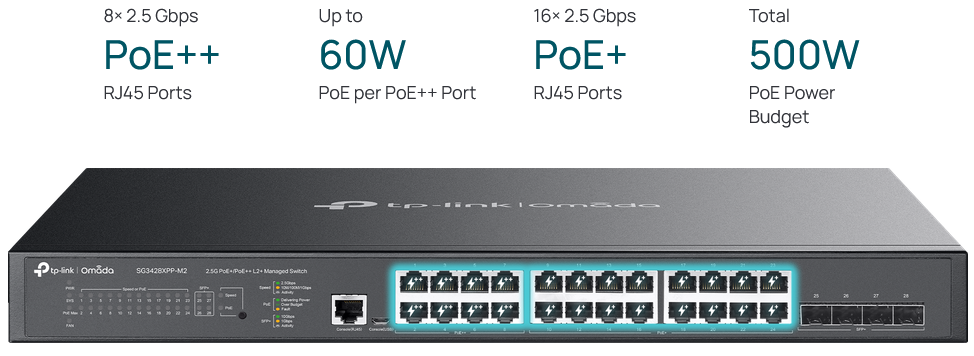

8x 2.5G PoE++ ports (up to 60 W PoE out per port)
16x 2.5G PoE+ ports (up to 30 W PoE out per port)
4x 10G SFP+ slots
500 W total PoE budget
Centralized cloud management via the web or the Omada app
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology

Empowering the Real WiFi 6 and WiFi 7 with 2.5G PoE++ / PoE+ Ports

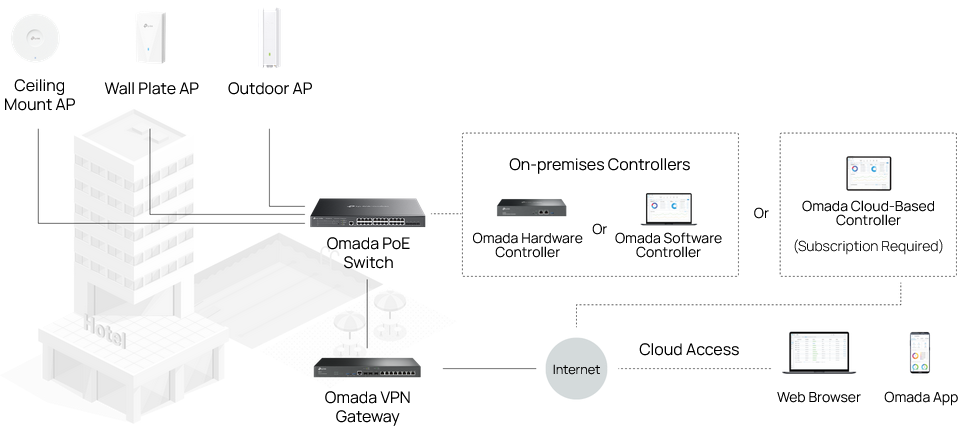

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

HARDWARE FEATURES
Interface	24x 2.5 Gbps RJ45 Ports (8x PoE++, 16x PoE+) 4x 10G SFP+ Slots 1x RJ45 Console Port 1x Micro-USB Console Port
Fan Quantity	3
Physical Security Lock	Yes
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	Standard: 802.3bt/at/af compliant PoE++ Ports (802.3bt/at/af PoE): 8 Ports, up to 60 W per port PoE+ Ports (802.3at/af PoE): 16 Ports, up to 30 W per port Power Budget: 500 W
Dimensions ( W x D x H )	17.3x13.0x1.7 in (440x330x44 mm)
Mounting	Rack Mountable
Max. Power Consumption	629.1 W (110V/60Hz)
Max. Heat Dissipation	2153.45 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity	200 Gbps
Packet Forwarding Rate	148.80 Mpps
MAC Address Table	32 K
Packet Buffer Memory	16 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	8 priority queues 802.1p CoS/DSCP priority Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR Bandwidth Control: Port/Flow-based Rating Limiting Smoother Performance Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	32 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 48 IPv4/IPv6 Static Routes Static ARP: 128 static entries 512 ARP Entries Proxy ARP Gratuitous ARP DHCP Server DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay DHCP L2 Relay Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring
L2 Multicast	Supports 511 (IPv4, IPv6) IGMP groups IGMP Snooping IGMP Authentication Multicast VLAN Registration (MVR) MLD Snooping Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule ISP Features: L2PT (Layer 2 Protocol Tunneling) Device Link Detect Protocol (DLDP) PPPoE ID Insertion ERPS 802.3ah Ethernet Link OAM DDM
VLAN	VLAN Group: Max 4K VLAN Groups 802.1q Tagged VLAN MAC VLAN: 256 Entries Protocol VLAN: Protocol Template 16, Protocol VLAN 16 Private VLAN GVRP VLAN VPN: VLAN Mapping, VLAN Replace Voice VLAN
Access Control List	Time-based ACL MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS Combined ACL Packet Content ACL IPv6 ACL Policy: Mirroring, Redirect, Rate Limit, QoS Remark ACL applies to Port/VLAN
Security	IP-MAC-Port Binding 512 Entries DHCP Snooping ARP Inspection IPv4 Source Guard: 100 Entries IPv6-MAC-Port Binding 512 Entries DHCPv6 Snooping ND Detection ND Snooping IPv6 Source Guard: 100 Entries DoS Defend DHCP Filter Static/Dynamic Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode 802.1X Port-based authentication Mac-base authentication VLAN Assignment MAB Guest VLAN Radius authentication and accountability support AAA (including TACACS+) Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control
IPv6	IPv6 Dual IPv4/IPv6 Multicast Listener Discovery (MLD) Snooping IPv6 ACL IPv6 Interface Static IPv6 Routing IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs	MIB II (RFC1213) Interface MIB (RFC2233) Ethernet Interface MIB (RFC1643) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) RMON MIB (RFC2819) RMON2 MIB (RFC2021) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIB
Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	Web-based GUI Command Line Interface (CLI) through the console port, telnet SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) SDM Template DHCP/BOOTP Client 802.1ab LLDP/LLDP-MED DHCP AutoInstall Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE Password Recovery SNTP System Log
OTHERS
Certification	CE, FCC, RoHS
Package Content	SG3428XPP-M2 Switch Power Cord Quick Installation Guide Rackmount Kit Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing

Τεχνικά Χαρακτηριστικά

Κατασκευαστής	Tp-Link
Μοντέλο	Omada SG3428XPP-M2 24-Port 2.5G 4-Port 10G SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ V1.0
Part Number	SG3428XPP-M2
Κατηγορία	Switches
Θύρες	24 Ports 4 SFP+ Ports
Port Speed	2.5 Gbps 10 Gbps
Manageable	Managed
Rackmount	Rackmount
Υποστήριξη PoE	Με PoE
Industrial	No
Τροφοδοσία	Με PoE+
Εγγύηση	Limited Lifetime Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com
