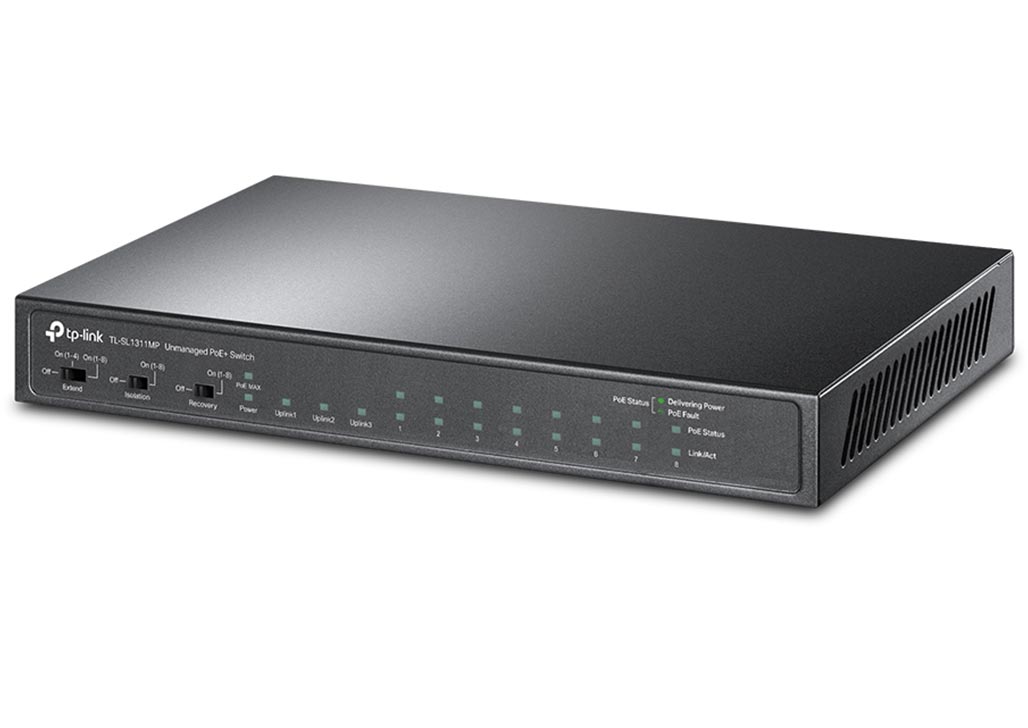

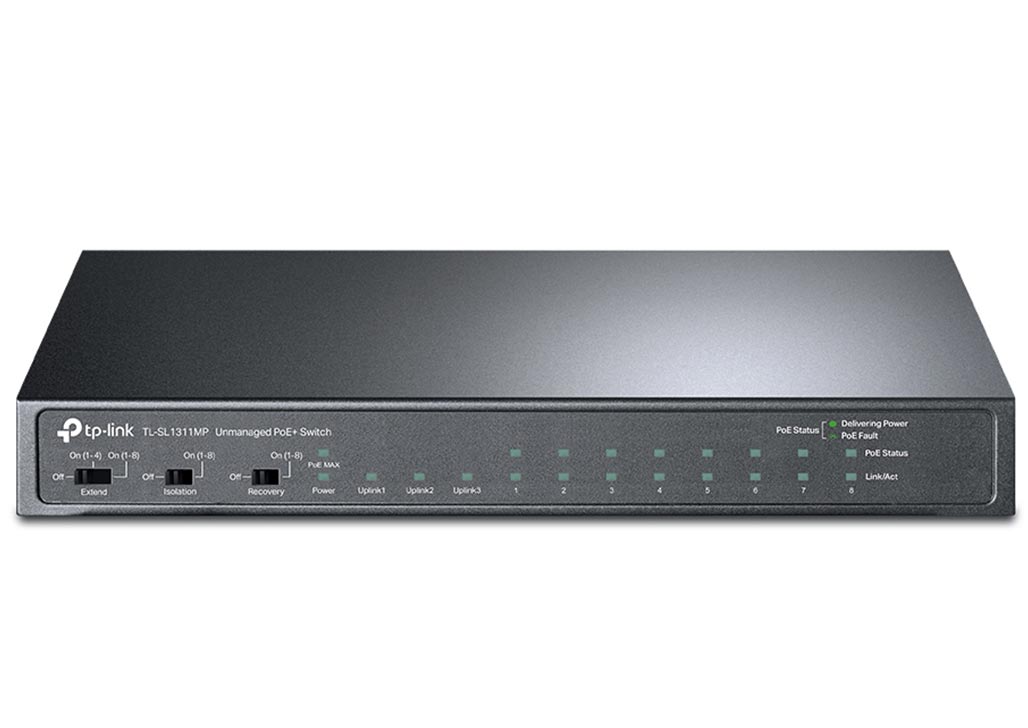

Tp-Link TL-SL1311MP 8-Port 10/100 3-Port 1G Desktop Switch with 8-Port PoE+ & 1-Port 1G SFP V1.0
Χωρίς ΦΠΑ: - €
Πληροφορίες
Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com
Δόσεις
- 8x 10/100 Mbps RJ45 Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port
- 8x PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 124 W for 8 PoE ports
- Up to 250 m data and power transmitting range under Extend Mode
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Fanless Design reduces power consumption and works silently in its location
- Plug and play with no configuration required

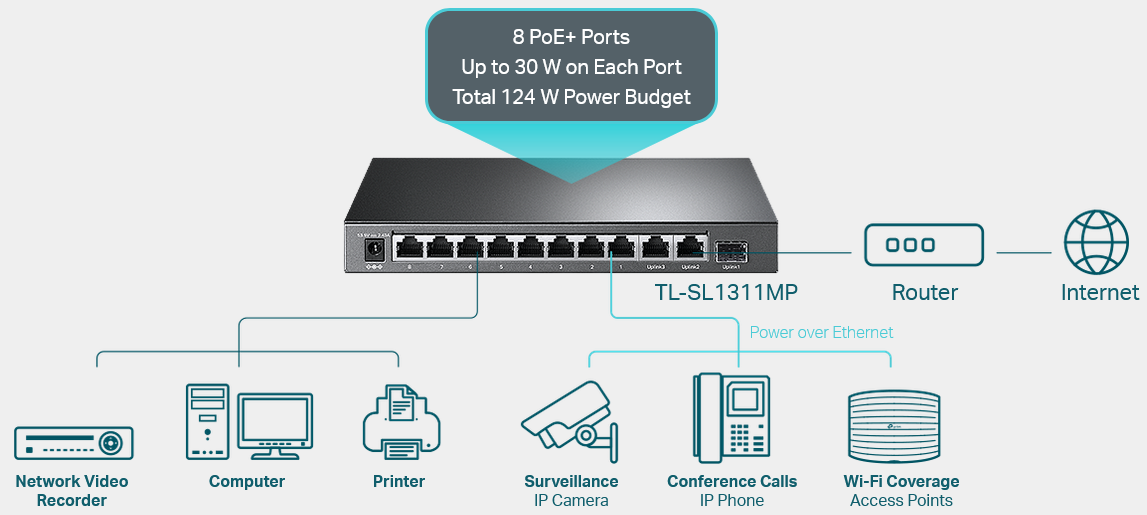

Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget for the 8x PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
.png)

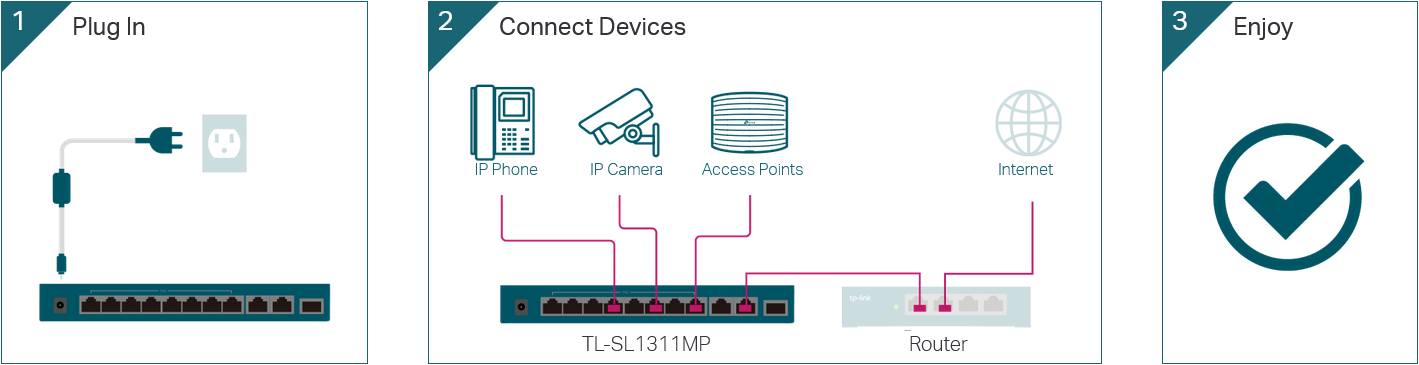

Plug and Play, No Configuration Required
.png)

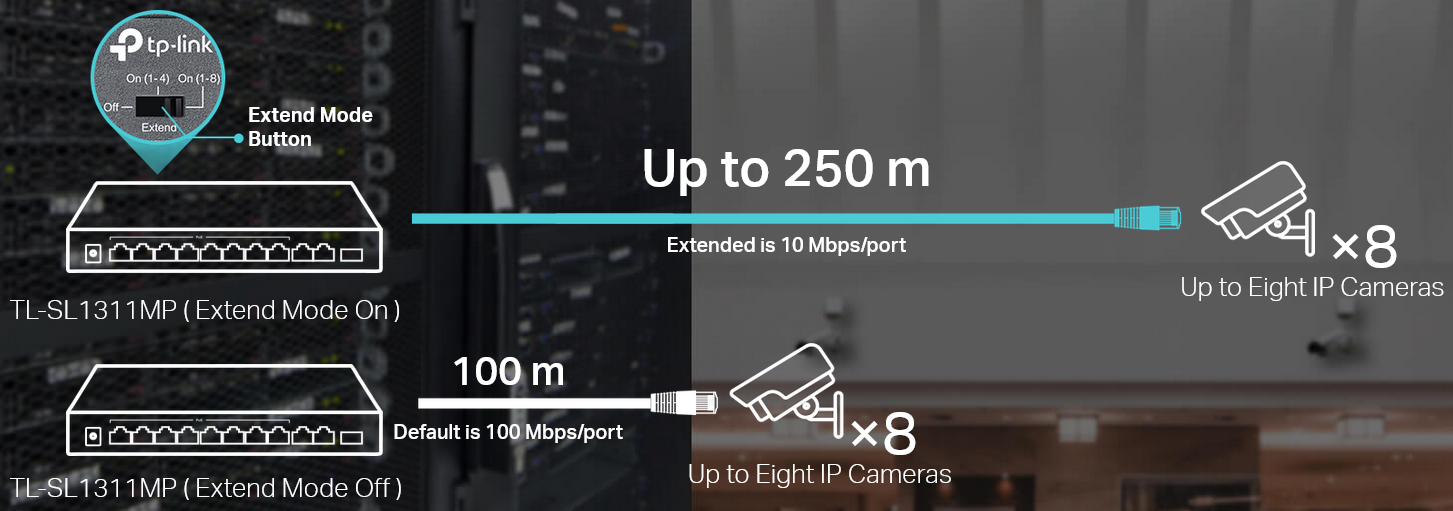

Ideal for IP Surveillance-Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m-perfect for IP Camera deployment in large areas.
.png)

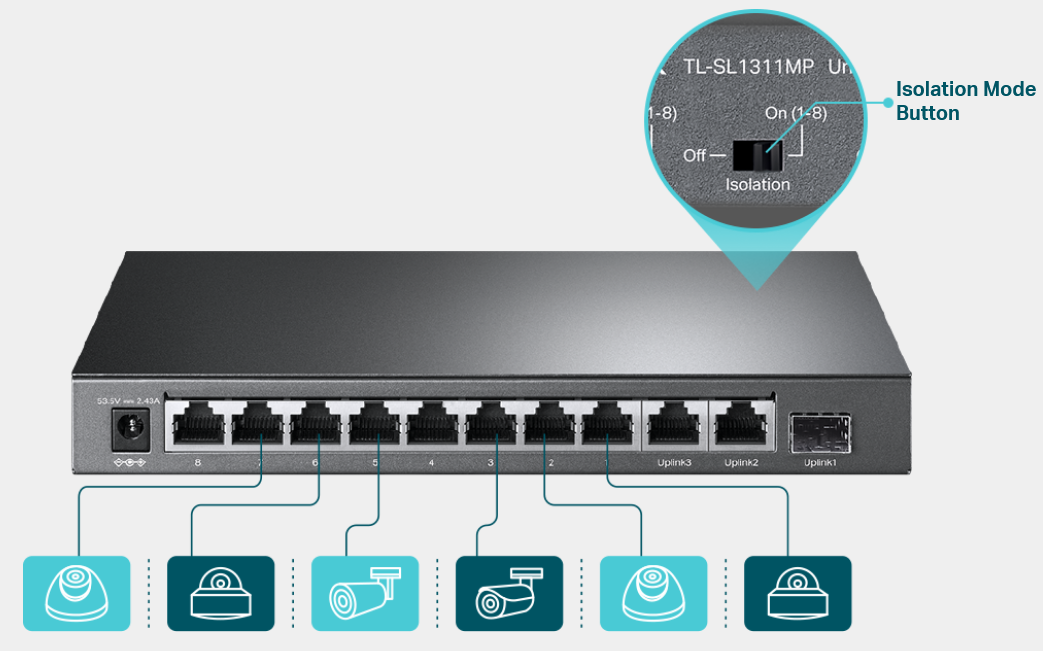

One-Click Traffic Separation
With one click, Isolation Mode easily divides traffic for ports 1-8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
.png)

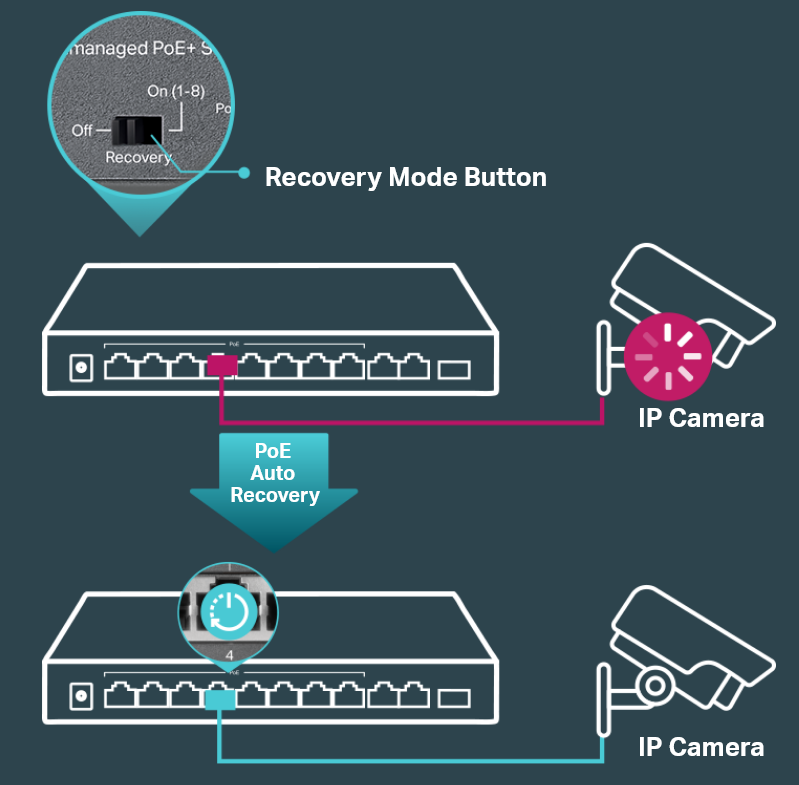

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.
.png)

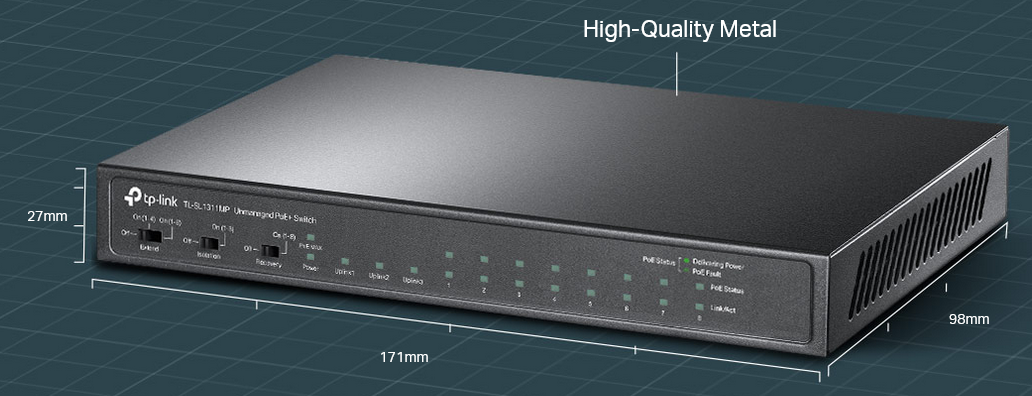

Durable Metal Casing
The interior components of TL-SL1311MP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SL1311MP delivers switching performance you can depend on.
.png)
|
HARDWARE FEATURES |
|
|---|---|

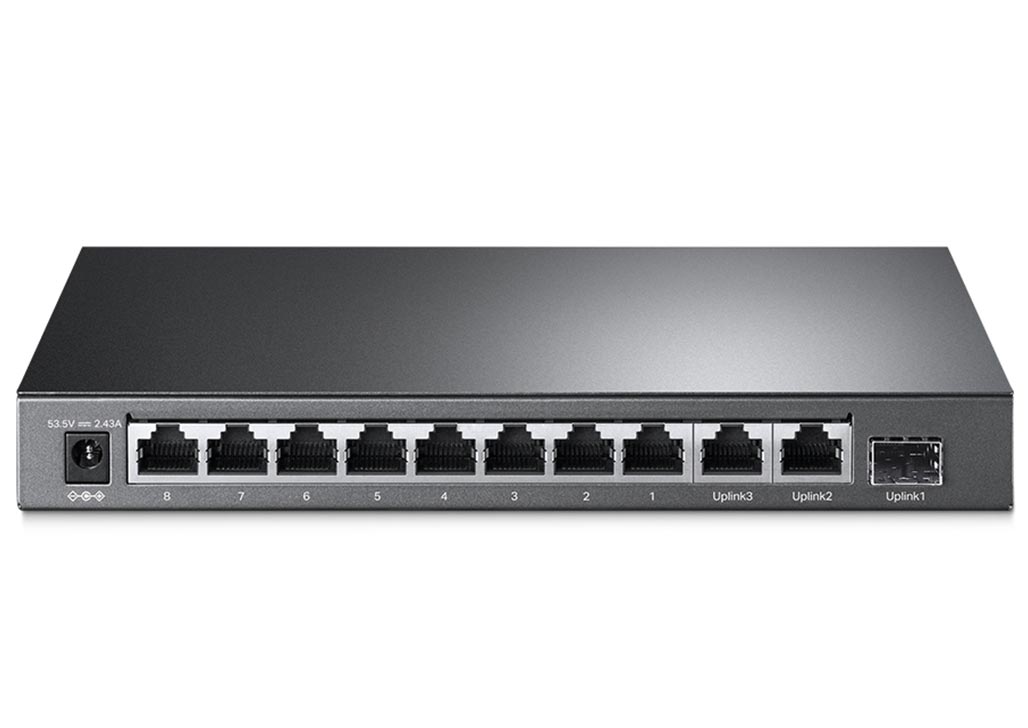

| Interface | 8x 10/100 Mbps 802.3af/at PoE+ Ports, 2x Gigabit RJ45 Ports, 1x Gigabit SFP Port AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
| Packet Forwarding Rate | 5.6544 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–8 Power Supply: 124 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 7.6 Gbps |
| Dimensions ( W x D x H ) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26 mm) |
| Max. Power Consumption | 5.95 W (220/50 Hz. no PD connected) 140.92 W (220/50 Hz. with 124 W PD connected) |
| Max Heat Dissipation | 20.29 BTU/h (no PD connected) 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
|
SOFTWARE FEATURES |
|
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) Isolation Mode Button (Ports 1–8) PoE Auto Recovery Button (Ports 1–8) Mac Address Auto-Learning and Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| Transmission Method | Store-And-Forward |
|
OTHERS |
|
| Certification | FCC, CE, RoHS |
| Package Content | TL-SL1311MP Power Adapter Installation Guide |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
| Κατασκευαστής | Tp-Link |
| Μοντέλο | TL-SL1311MP 8-Port 10/100 3-Port 1G Desktop Switch with 8-Port PoE+ & 1-Port 1G SFP V1.0 |
| Part Number | TL-SL1311MP |
| Κατηγορία | Switches |
| Θύρες | 10 Ports 1 SFP Port |
| Port Speed | 10/100 Mbps 1 Gbps |
| Manageable | Unmanaged |
| Rackmount | No Rackmount |
| Υποστήριξη PoE | Με PoE |
| Industrial | No |
| Τροφοδοσία | DC Adapter |
| Εγγύηση | Limited Lifetime, Περισσότερες λεπτομέρειες δείτε στην επίσημη σελίδα του κατασκευαστή στο link. Γραμμή τεχνικής υποστήριξης 210.614.8834, Email: support.gr@tp-link.com |
